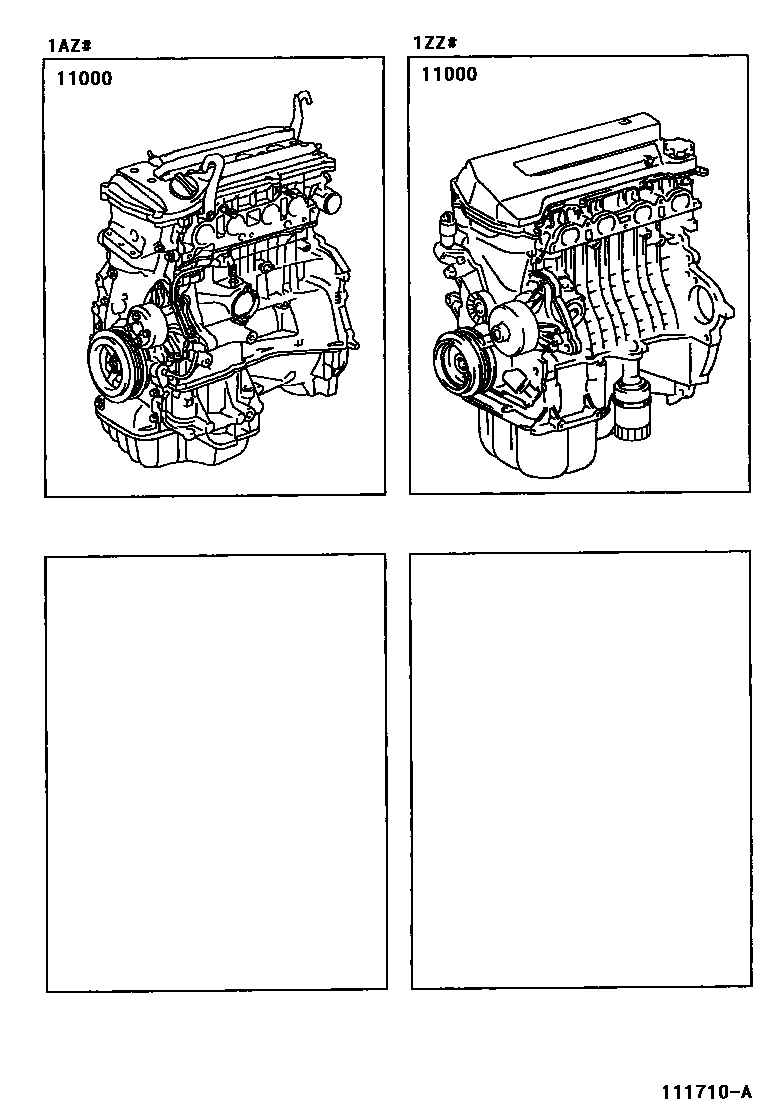

Toyota RAV4 J/L — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-22080i1ZZFE..ZCA2#200101-200202

main19000-22081i1ZZFE..ZCA2#200202-200209

main19000-22170i1ZZFE..ZCA2#200005-200101

main19000-22320i1ZZFE..ZCA2#200209-200307

sub19000-22321

sub16258-28030

sub16268-22042

sub16268-22101

main19000-22370i1ZZFE..ZCA2#200307-200511

sub19000-22371

sub16258-28030

sub16268-22101

main19000-28150i1AZFSE..ACA2#200005-200307

sub19000-28151

main19000-28330i1AZFSE..ACA2#200307-200511

1 parts on this diagram · 1 diagram in section
