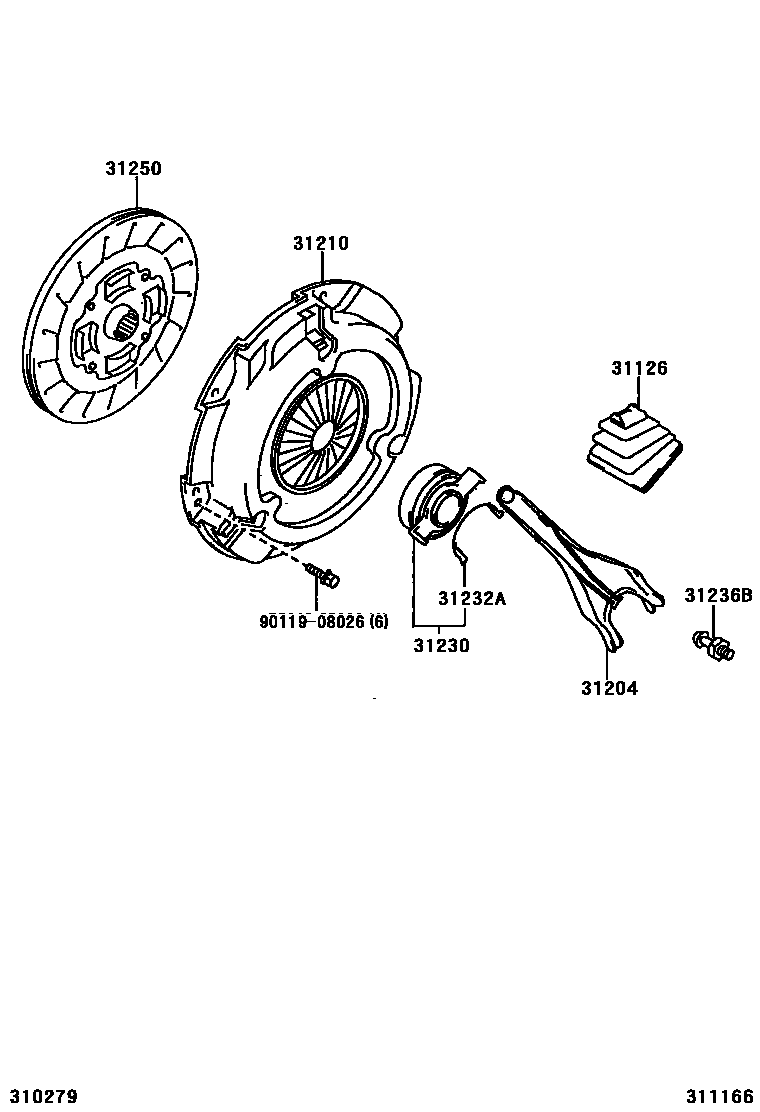

Toyota RAV4 J/L — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010i200005-200307

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100i200005-200307

31210COVER ASSY, CLUTCH

main31210-42010i200005-200307

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170i200005-200307

31232ACLIP, RELEASE BEARING HUB

main31232-20020i200005-200307

31236BSUPPORT, RELEASE FORK

main31236-20060i200005-200307

31250DISC ASSY, CLUTCH

main31250-28180i200005-200307

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota RAV4 J/L

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota RAV4 J/L. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
