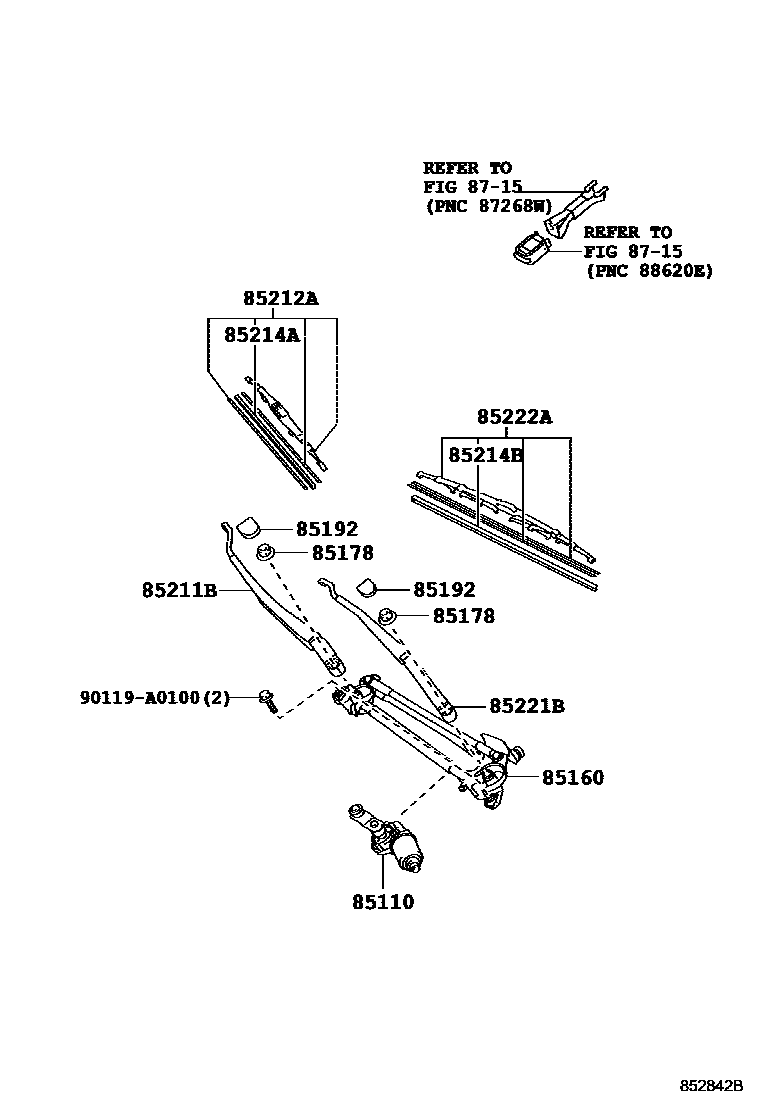

Toyota RAV4 EV — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0R010iQEA38201204-201408

sub85110-0R011

85160LINK ASSY, WINDSHIELD WIPER

main85150-0R010iQEA38201204

sub85150-0R011

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iQEA38201204-201301

main90182-A0017×2iQEA38201302

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iQEA38201204-201301

main85292-AA010×2iQEA38201302

85211BARM, FRONT WIPER, RH

main85211-0R010iQEA38201204

85212ABLADE, FR WIPER, RH

main85212-0R040iQEA38201205

main85212-35071iQEA38201204-201205

85214ARUBBER, WIPER, RH

main85214-12301iQEA38201204

85214BRUBBER, WIPER, LH

main85214-50100iQEA38201204

85221BARM, FRONT WIPER, LH

main85221-0R010iQEA38201204

85222ABLADE, FR WIPER, LH

main85222-0R040iQEA38201205

main85222-24080iQEA38201204-201205

8715

90119A0100

main90119-A0100

12 parts on this diagram · 1 diagram in section
