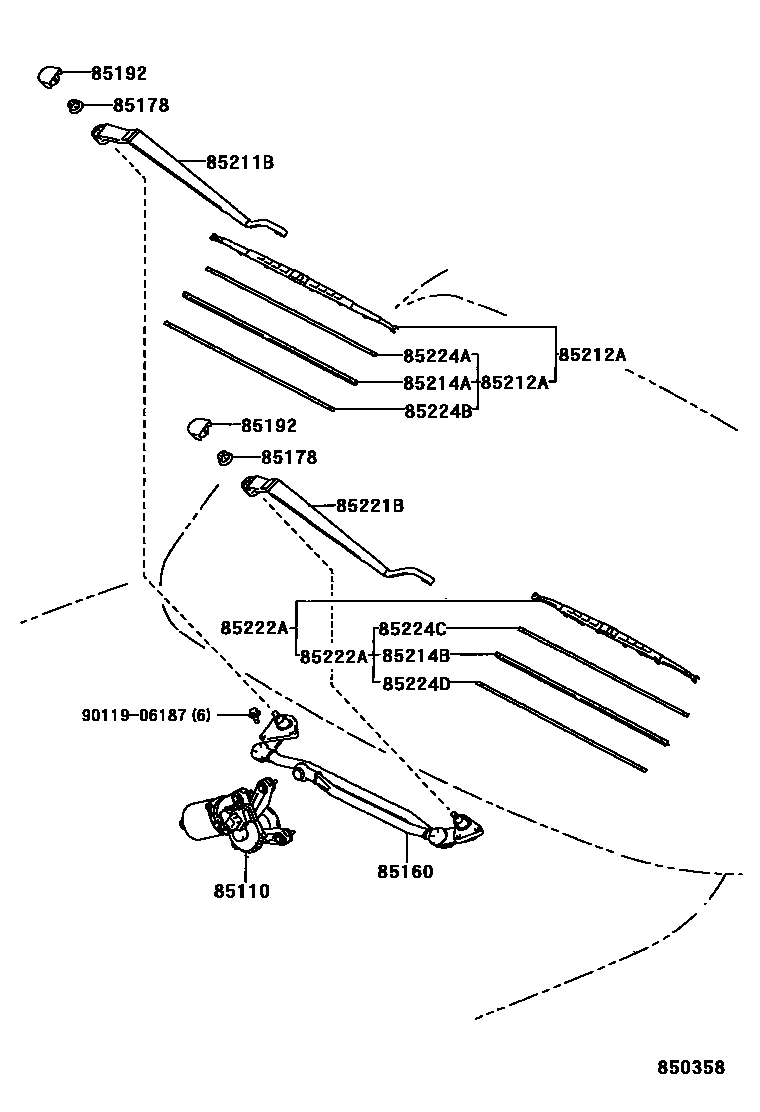

Toyota RAV4 EV — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42031iBEA11199709-199911

COLD SPEC

main85110-42040iBEA11199709-199911

85160LINK ASSY, WINDSHIELD WIPER

main85150-42050iBEA11199709-199911

main85150-42060iBEA11199911

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iBEA11199709-199911

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iBEA11199709-199911

85211BARM, FRONT WIPER, RH

main85211-42060iBEA11199709-199911

85212ABLADE, FR WIPER, RH

main85212-60090iBEA11199709-199911

sub85212-33160

85214ARUBBER, WIPER, RH

main85214-60060iBEA11199709-199911

85214BRUBBER, WIPER, LH

main85214-42020iBEA11199709-199911

sub85214-24051

85221BARM, FRONT WIPER, LH

main85221-42050iBEA11199709-199911

85222ABLADE, FR WIPER, LH

main85222-42040iBEA11199709-199911

sub85222-42041

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60100iBEA11199709-199911

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60100iBEA11199709-199911

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10210iBEA11199709-199911

sub85224-10180

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10210iBEA11199709-199911

sub85224-10180

9011906187

main90119-06187

15 parts on this diagram · 1 diagram in section
