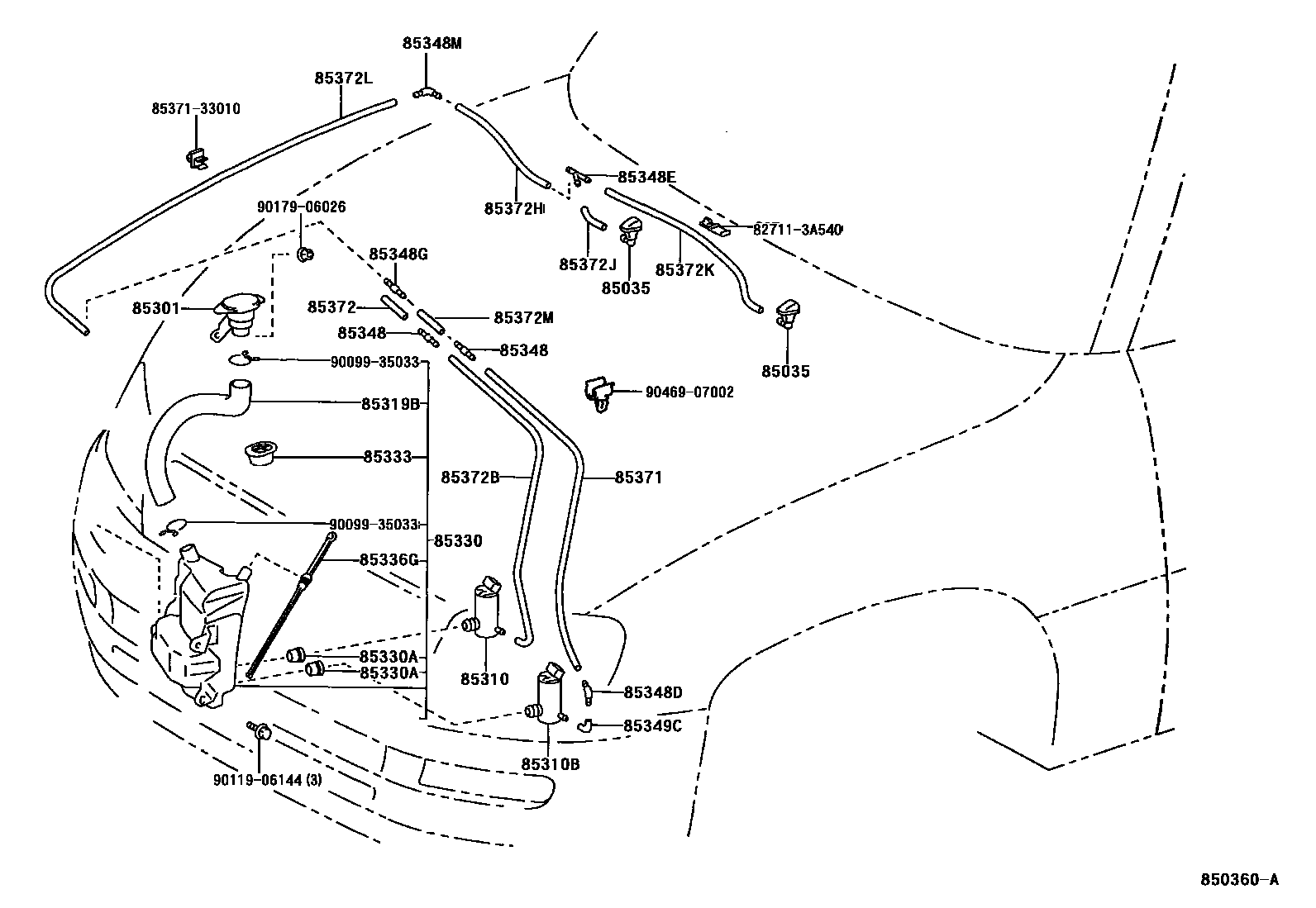

Toyota RAV4 EV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iBEA11199709-199911

main85381-42040×2iBEA11199709-199911

COLD SPEC

sub85381-42070

85301INLET SUB-ASSY, WASHER

main85301-42011iBEA11199709-199911

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iBEA11199709-199911

85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER

main85330-10280iBEA11199709-199911

85319BHOSE, WINDOW WASHER

main85319-42010iBEA11199709-199911

85330JAR ASSY, WINDSHIELD WASHER

main85315-42011iBEA11199709-199911

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iBEA11199709-199911

85333FILTER, WINDSHIELD WASHER JAR

main85312-42010iBEA11199911

85336GGAGE, WATER LEVEL

main85336-42010iBEA11199709-199911

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2iBEA11199709-199911

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iBEA11199709-199911

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85348-14390iBEA11199709-199911

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iBEA11199709-199911

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85376-10250iBEA11199709-199911

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-14481iBEA11199709-199911

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iBEA11199709-199911

L=1800(*H,L=700)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iBEA11199709-199911

L=1450(*H,L=40)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iBEA11199709-199911

L=1800(*H,L=650)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iBEA11199709-199911

L=1450(*H,L=390)

main90099-59175iBEA11199709-199911

L=1800(*H,L=390)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iBEA11199709-199911

L=1450(*H,L=40)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iBEA11199911

L=1450(*H,L=540),COLD SPEC

main90099-33299iBEA11199709-199911

L=1000(*H,L=540)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33224iBEA11199911

L=1200

main90446-07001iBEA11199709-199911

L=1800(*H,L=1140)

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080iBEA11199709-199911

L=1450(*H,L=40)

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009935033

main90099-35033

9011906144

main90119-06144

9017906026

main90179-06026

9046907002

main90469-07002

29 parts on this diagram · 1 diagram in section
