Toyota RAV4 EV — VANE PUMP & RESERVOIR (POWER STEERING)

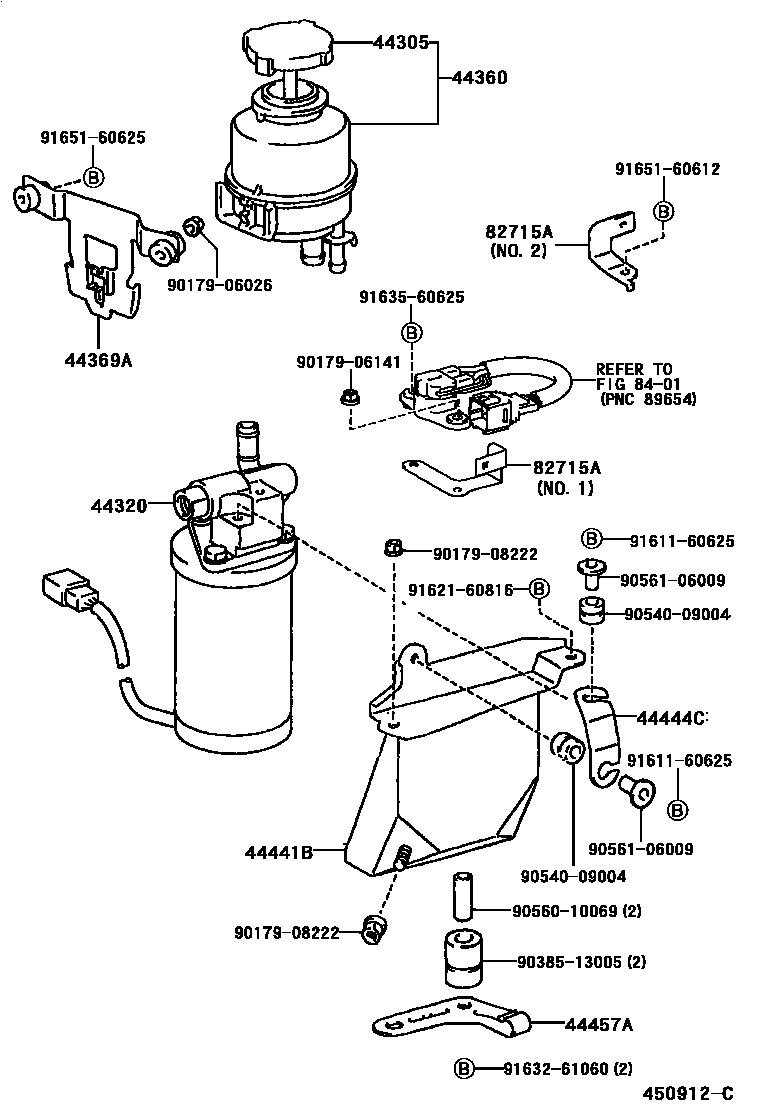

Parts diagram

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-42010i199911

44320PUMP ASSY, VANE

main44320-42040i199709-199911

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-42020i199709-199911

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-42030i199709-199911

44441BBRACKET, PUMP, FRONT

main44441-42010i199911

44444CSTAY, VANE PUMP, REAR

main44444-42010i199709-199911

44457ABRACKET, TUBE SUPPORT, VANE PUMP

main44457-42020i199709-199911

82715ABRACKET, WIRING HARNESS CLAMP

main82715-42360i199709-199911

NO.1

main82715-42420i199911

NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906026

main90179-06026

9017906141

main90179-06141

9017908222

main90179-08222

9038513005

main90385-13005

9054009004

main90540-09004

9056010069

main90560-10069

9056106009

main90561-06009

9161160625

main91611-60625

9162160816

main91621-60816

9163261060

main91632-61060

9163560625

main91635-60625

9165160612

main91651-60612

9165160625

main91651-60625

22 parts on this diagram · 1 diagram in section

VANE PUMP & RESERVOIR (POWER STEERING) for Toyota RAV4 EV

This section contains 22 genuine Toyota parts for the VANE PUMP & RESERVOIR (POWER STEERING) system of the Toyota RAV4 EV. Key components include: CAP SUB-ASSY, VANE PUMP OIL RESERVOIR, PUMP ASSY, VANE, RESERVOIR ASSY, VANE PUMP OIL, BRACKET, OIL RESERVOIR, NO.1, BRACKET, PUMP, FRONT.
