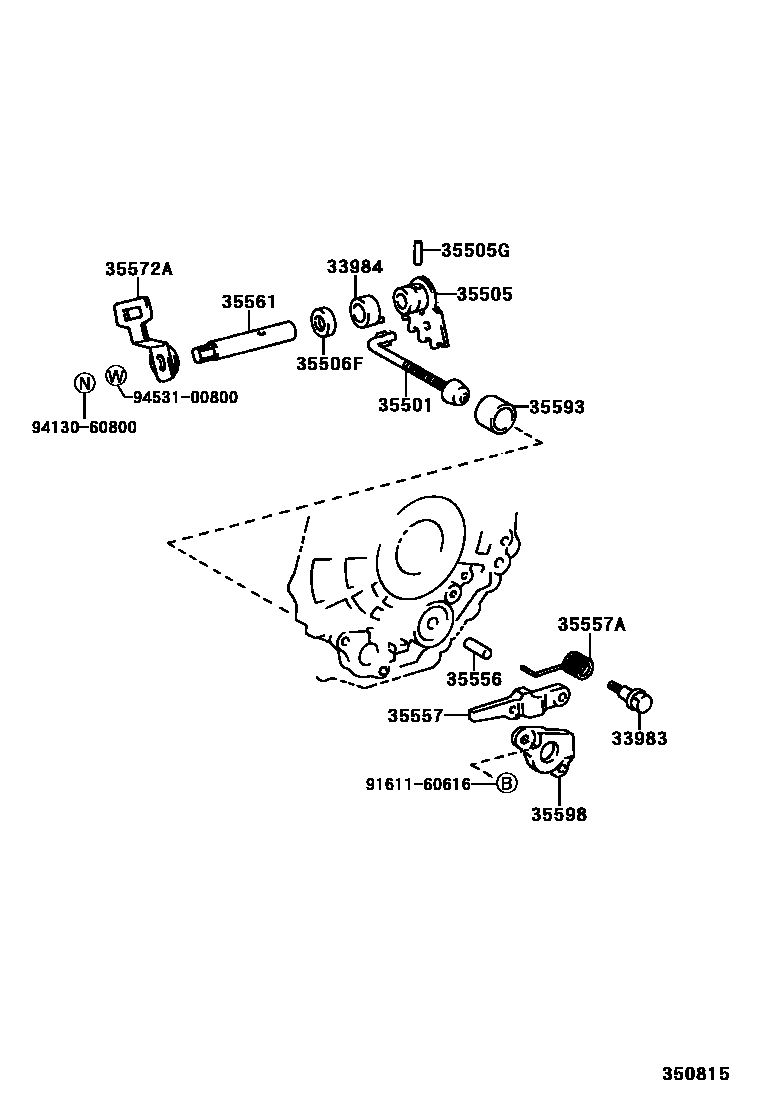

Toyota RAV4 EV — THROTTLE LINK & VALVE LEVER (ATM)

33983HOLDER, PARKING LOCK TORSION SPRING

main33983-42010i199709-199911

33984COVER, MANUAL LEVER SHAFT PIN

main33984-42010i199709-199911

35501ROD SUB-ASSY, PARKING LOCK

main35501-42010i199709-199911

main35501-42011i200005

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-42010i199709-199911

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011i199709-199911

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002i199709-199911

35556SHAFT, PARKING LOCK PAWL

main35556-42010i199709-199911

35557PAWL, PARKING LOCK

main35557-42010i199709-199911

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03055i199709-199911

35561SHAFT, MANUAL VALVE LEVER

main35561-42010i199709-199911

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-42010i199709-199911

35593SLEEVE, CAM GUIDE

main35593-42010i199709-199911

35598SLEEVE, PARKING LOCK

main35598-42010i199709-199911

9161160616

main91611-60616

9413060800

main94130-60800

9453100800

main94531-00800

16 parts on this diagram · 1 diagram in section

THROTTLE LINK & VALVE LEVER (ATM) for Toyota RAV4 EV

This section contains 16 genuine Toyota parts for the THROTTLE LINK & VALVE LEVER (ATM) system of the Toyota RAV4 EV. Key components include: HOLDER, PARKING LOCK TORSION SPRING, COVER, MANUAL LEVER SHAFT PIN, ROD SUB-ASSY, PARKING LOCK, LEVER SUB-ASSY, MANUAL VALVE, PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER).
