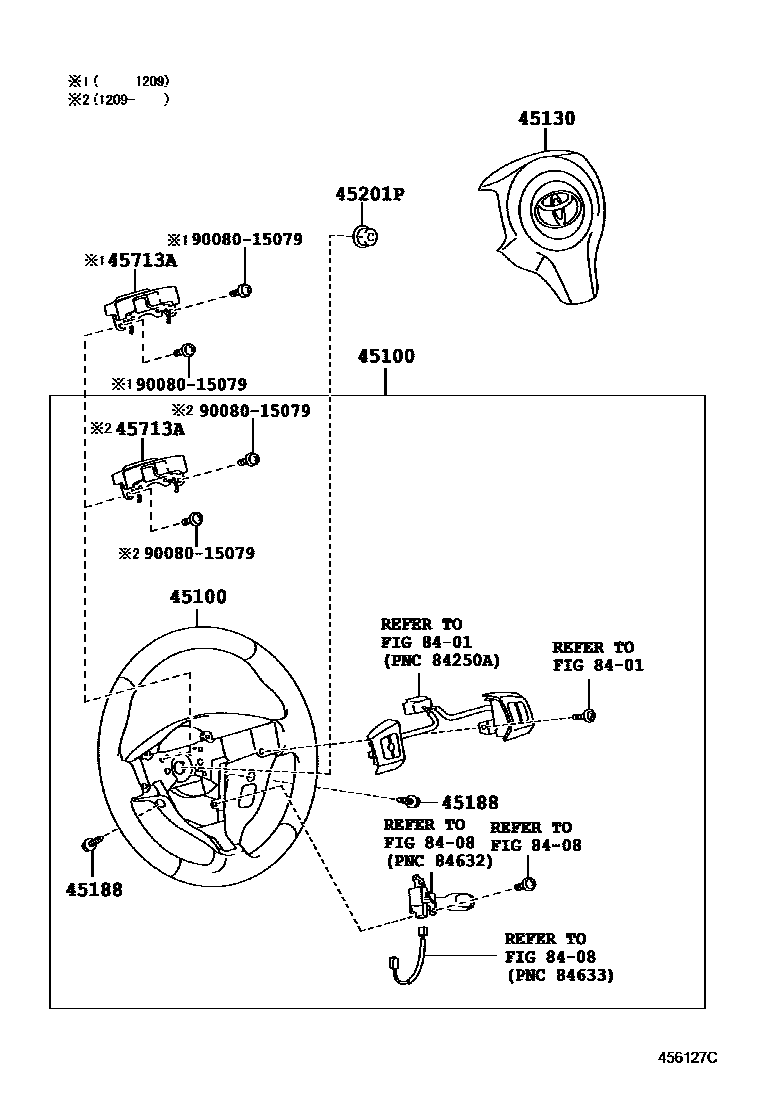

Toyota RAV4 EV — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0R140-B0i201204-201208

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-0R141-B0i201209-201408

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-0R020-B0i201204-201408

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-07010×2i201204

L=18.5

45201PNUT, STEERING WHEEL SET

main90080-17234i201204

45713ADAMPER, STEERING SHAKE

main45713-42020i201206-201408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9008015079

main90080-15079

8 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota RAV4 EV

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota RAV4 EV. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SCREW, STEERING WHEEL PAD ATTACHING, NUT, STEERING WHEEL SET, DAMPER, STEERING SHAKE.
