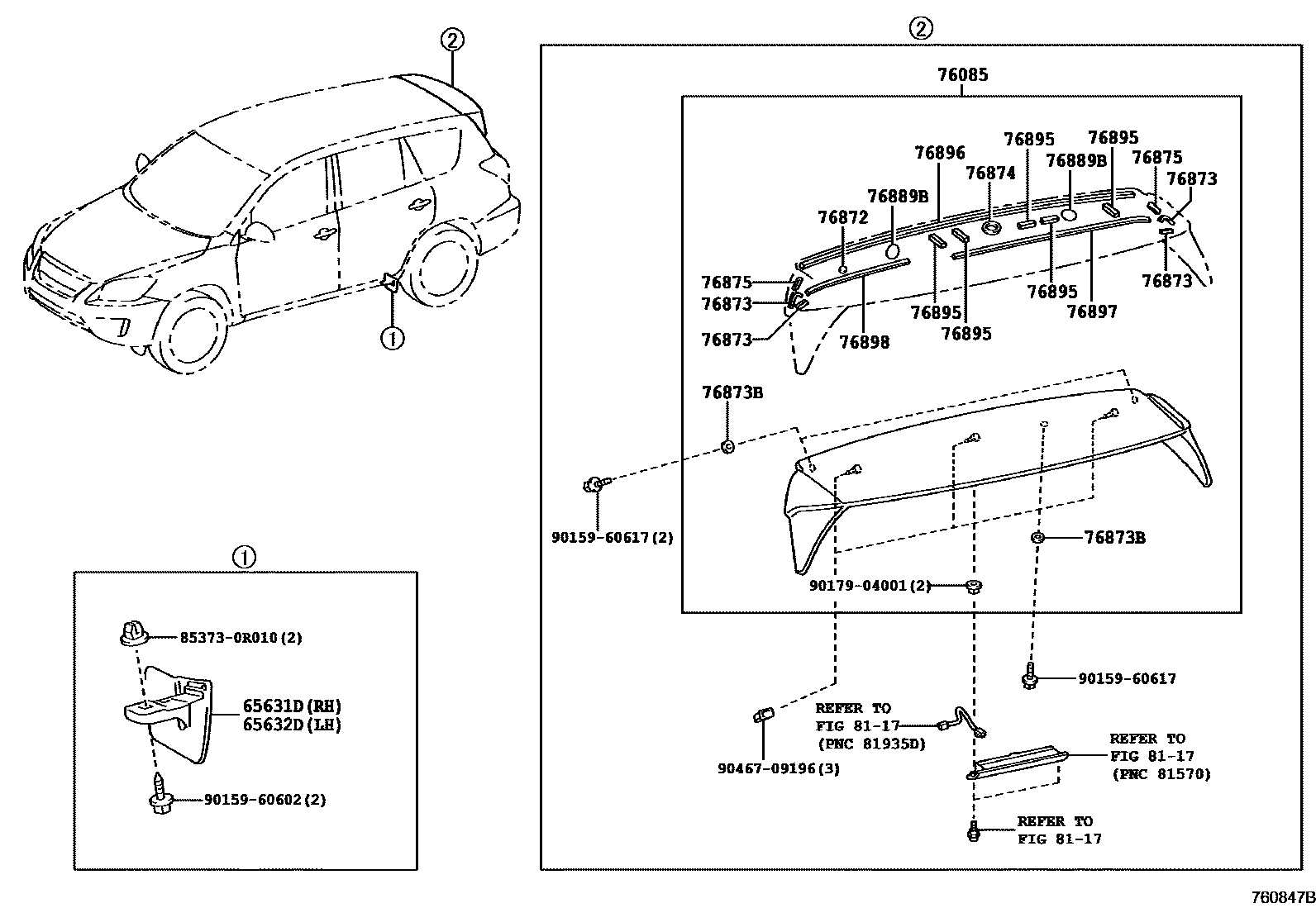

Toyota RAV4 EV — SPOILER & SIDE MUDGUARD

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0R040i201204-201408

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0R040i201204

76085SPOILER SUB-ASSY, REAR

main76085-0R901-A0i201204

SUPER WHITE 2,040

main76085-0R901-A1i201204

WHITE PEARL CS.,070

main76085-0R901-B0i201204

SILVER ME.,1F7

main76085-0R901-B1i201204

GRAY ME.,1G3

main76085-0R901-J0i201204

GRAYISH BLUE M.M.,8V5

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0R010i201204

76873PROTECTOR, REAR SPOILER, NO.2

main76875-0R020×4i201204-201408

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-0R010×3i201204

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0R010i201204

76875PROTECTOR, REAR SPOILER, NO.4

main76876-0R010×2i201204-201408

76889BSEAL, REAR SPOILER, NO.1

main76889-0R010×2i201204

76895PROTECTOR, REAR SPOILER, NO.5

main76895-0R010×5i201204-201408

76896PROTECTOR, REAR SPOILER, NO.6

main76896-0R010i201204-201408

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-0R010i201204

76898PROTECTOR, REAR SPOILER, SIDE LH

main76897-0R010i201204-201206

L=655

main76898-0R010i201206

L=280

8117CENTER STOP LAMP

→ Go to FIG 81-17

853730R010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0R010

9015960602

main90159-60602

9015960617

main90159-60617

9017904001

main90179-04001

9046709196

main90467-09196

19 parts on this diagram · 1 diagram in section

SPOILER & SIDE MUDGUARD for Toyota RAV4 EV

This section contains 19 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota RAV4 EV. Key components include: PLATE, REAR WHEEL HOUSE, FRONT RH, PLATE, REAR WHEEL HOUSE, FRONT LH, SPOILER SUB-ASSY, REAR, PROTECTOR, REAR SPOILER, NO.1, PROTECTOR, REAR SPOILER, NO.2.
