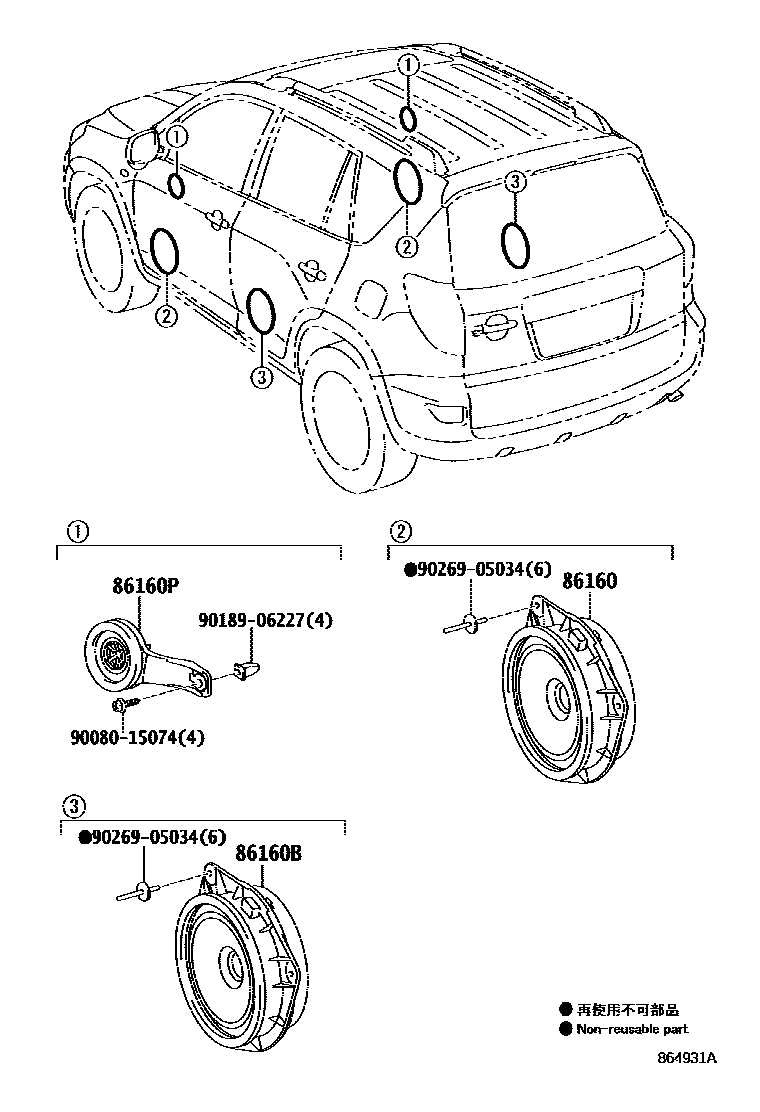

Toyota RAV4 EV — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0C140×2iQEA38201204

86160BSPEAKER ASSY, REAR

main86160-0C140×2iQEA38201204

86160PSPEAKER ASSY, FRONT NO.2

main86160-0R020iQEA38201204

RH

main86160-0R030iQEA38201204

LH

9008015074

main90080-15074

9018906227

main90189-06227

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section
