Toyota RAV4 EV — SIDE MEMBER

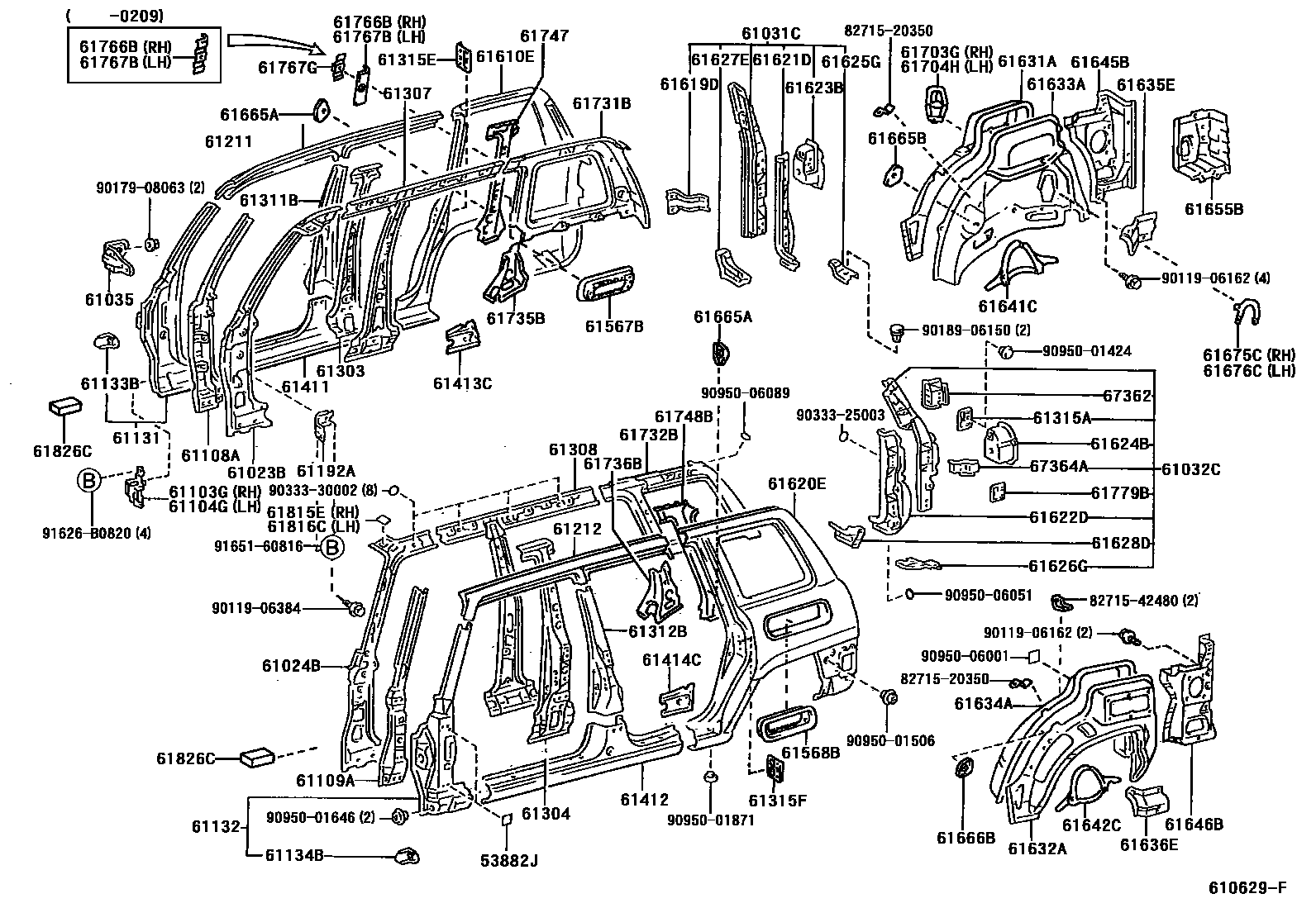

Parts diagram

53882JSEAL, FRONT FENDER

main53882-22080×4i199709-199911

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-42031i199709-199911

main61023-42042i200209

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-42041i199709-199911

main61024-42042i200209

61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

main61031-42040i199709

61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

main61032-42040i199709

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-42010i199709-199911

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-42010i199709-199911

61104GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61104-42010i199709-199911

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-42040i199709

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-42040i199709

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61110-42080i199709-199911

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61120-42080i199709-199911

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12190i199709

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-12190i199709

61192ABRACKET, COMPUTER TO COWL SIDE, NO.2

main61192-42010i199709-199911

61211RAIL, ROOF SIDE, OUTER RH

main61211-42020i199709-199911

61212RAIL, ROOF SIDE, OUTER LH

main61212-42040i199709-199911

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-42020i199709-200209

main61303-42110i200209

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-42020i199709-200209

main61304-42110i200209

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-42020i199709-199911

main61307-42060i200209

main61307-42900i199812-200209

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-42020i199709-199911

main61308-42060i200209

main61308-42900i199812-200209

61311BPILLAR, CENTER BODY, OUTER RH

main61311-42011i199709-199911

61312BPILLAR, CENTER BODY, OUTER LH

main61312-42011i199911

61315ARETAINER, DOOR LOCK STRIKER

main61315-16020i199709

61315ERETAINER, REAR DOOR LOCK STRIKER, RH

main61315-16020i199709-199911

61315FRETAINER, REAR DOOR LOCK STRIKER, LH

main61315-16020i199709-199911

61411PANEL, ROCKER, OUTER RH

main61411-42070i199709-199911

61412PANEL, ROCKER, OUTER LH

main61412-42080i199911

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-42020i199709-199911

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-42020i199709-199911

61567BPLATE, QUARTER PANEL END, RH

main61567-42010i199709

61568BPLATE, QUARTER PANEL END, LH

main61568-42010i199709

61610EFENDER ASSY, REAR RH

main61610-42100i199709-199911

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-42020i199709

61620EFENDER ASSY, REAR LH

main61620-42120i199709-199911

61621DTROUGH, BACK DOOR OPENING, RH

main61621-42010i199709

61622DTROUGH, BACK DOOR OPENING, LH

main61622-42010i199709

61623BTROUGH, BACK DOOR OPENING, REAR RH

main61623-42010i199709

61624BTROUGH, BACK DOOR OPENING, REAR LH

main61624-42010i199709

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-42010i199709

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-42010i199709

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-42030i199709

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-42030i199709

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-42040i199709-199911

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-42050i199709-199911

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-42030i199709-199911

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-42030i199709-199911

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-42020i199709-199911

61636EEXTENSION, QUARTER WHEEL HOUSE, LH

main61636-42020i199709-199911

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-42010i199709-199911

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-42010i199709

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-42030i199709-199911

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-42030i199709-199911

61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH

main61655-42020i199709-199911

61665AREINFORCEMENT, SAFETY BELT ANCHORAGE, REAR

main61665-10010i199709-199911

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-10010i199709-199911

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61665-10010i199709-199911

61675CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH

main61675-42020i199709-199911

61676CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR LH

main61675-42020i199709-199911

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-42010i199709-199911

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-42010i199709-199911

61731BPANEL, ROOF SIDE, INNER RH

main61731-42021i199709-199911

main61731-42070i200209

61732BPANEL, ROOF SIDE, INNER LH

main61732-42020i199709-199911

main61732-42070i200209

61735BEXTENSION, QUARTER PANEL, INNER RH

main61735-42020i199709-199911

61736BEXTENSION, QUARTER PANEL, INNER LH

main61736-42020i199709-199911

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-42020i199709-199911

main61747-42030i200209

61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH

main61748-42010i199709-199911

main61748-42020i200209

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-42020i199709-199911

main61766-42030i200209

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61766-42020i199709-199911

main61766-42030i200209

61767GRETAINER, SEAT BELT ANCHOR, NO.2

main61767-42010i200209

61779BPLATE, BACK DOOR OPENING, LOWER LH

main61779-42010i199709

61815ECOVER, ROOF SIDE, INNER UPPER RH

main61825-12010i199709-199911

61816CCOVER, ROOF SIDE, INNER UPPER LH

main61825-12010i199709-199911

61826CPAD, NOISE SHUTTER, NO.3

main61826-10010×2i199709-199911

67362REINFORCEMENT, BACK DOOR UPPER HINGE, LH

main67362-42020i199709

67364AREINFORCEMENT, BACK DOOR LOWER HINGE, LH

main67364-42020i199709

8271520350BRACKET,WIRING HARNESS CLAMP

main82715-20350

8271542480BRACKET,WIRING HARNESS CLAMP

main82715-42480

9011906162

main90119-06162

9011906384

main90119-06384

9017908063

main90179-08063

9018906150

main90189-06150

9033325003

main90333-25003

9033330002

main90333-30002

9095001424

main90950-01424

9095001506

main90950-01506

9095001646

main90950-01646

9095001871

main90950-01871

9095006001

main90950-06001

9095006051

main90950-06051

9095006089

main90950-06089

91626B0820

main91626-B0820

9165160816

main91651-60816

93 parts on this diagram · 1 diagram in section

SIDE MEMBER for Toyota RAV4 EV

This section contains 93 genuine Toyota parts for the SIDE MEMBER system of the Toyota RAV4 EV. Key components include: SEAL, FRONT FENDER, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH, EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH.
