Toyota RAV4 EV — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-49006-B0i201204

ORNAMENT SILVER,TRIM1#

33525SUPPORT, SHIFT LEVER

main58123-0R040i201204

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-42270-B1i201204-201408

ORNAMENT SILVER,TRIM1#

35970FHOUSING ASSY, POSITION INDICATOR

main35970-0R050i201204

9008011599

main90080-11599

90178A0093

main90178-A0093

9046710203

main90467-10203

7 parts on this diagram · 1 diagram in section

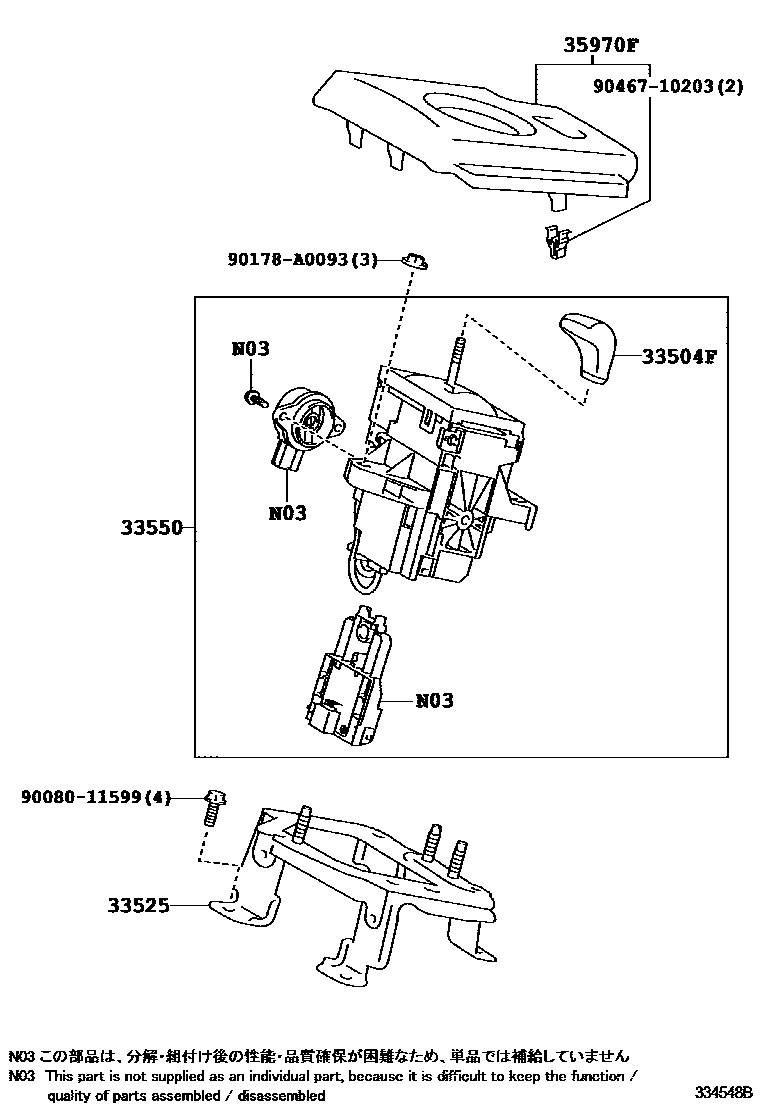

SHIFT LEVER & RETAINER for Toyota RAV4 EV

This section contains 7 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota RAV4 EV. Key components include: KNOB SUB-ASSY, SHIFT LEVER, SUPPORT, SHIFT LEVER, FLOOR SHIFT ASSY, TRANSMISSION, HOUSING ASSY, POSITION INDICATOR.
