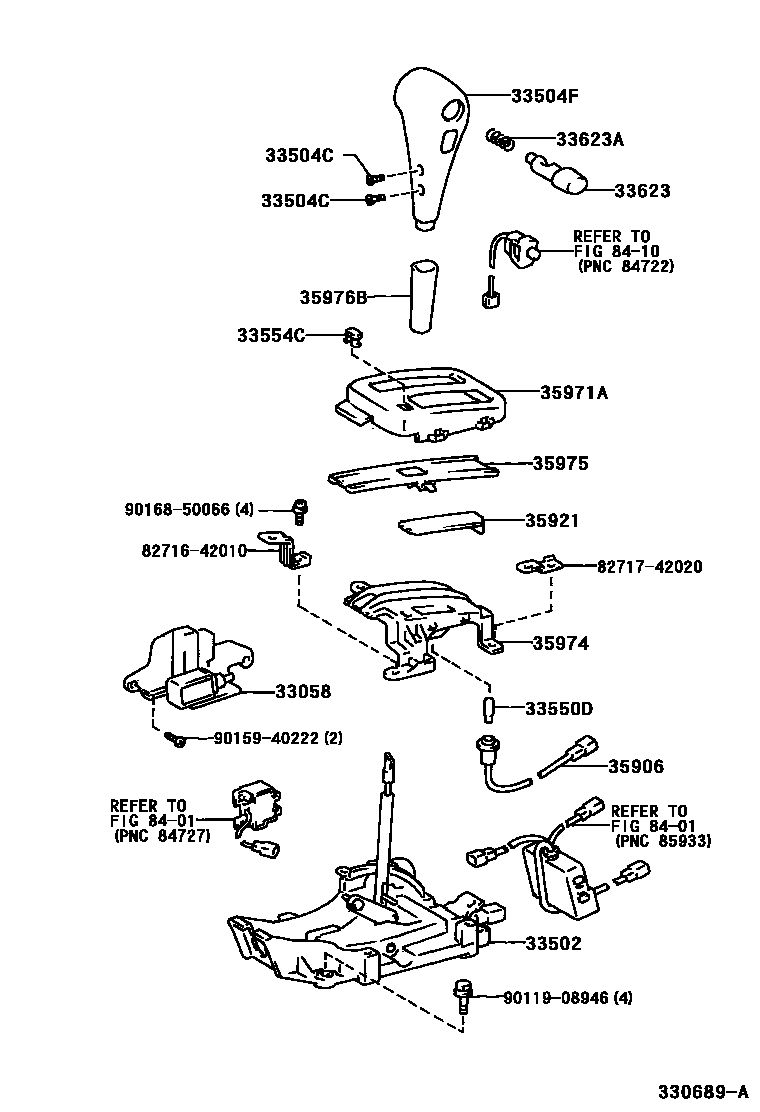

Toyota RAV4 EV — SHIFT LEVER & RETAINER

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-12050i199709-199911

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-42030i199709-199911

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40244×2i199709-199911

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-12230-C0i199709

BLACK,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main99132-12034i199709-199911

12V 3.4W

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-12080-C0i199709

BLACK,TRIM1#

33623BUTTON, SHIFT LEVER KNOB

main33623-12120-C0i199709

BLACK,TRIM1#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07037i199709-199911

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12130i199709-199911

35921PLATE, CONTROL POSITION INDICATOR

main35921-42020i199709-199911

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12330-C0i199709

BLACK,TRIM1#

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12161i199709-199911

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12200-C0i199709

BLACK,TRIM1#

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12080-C0i199709

BLACK,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

8271642010BRACKET, WIRING HARNESS CLAMP, LH

main82716-42010

8271742020

main82717-42020

9011908946

main90119-08946

9015940222

main90159-40222

9016850066

main90168-50066

21 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota RAV4 EV

This section contains 29 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota RAV4 EV. Key components include: BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, PLATE SUB-ASSY, SHIFT LEVER, SCREW (FOR SHIFT LEVER KNOB SETTING), KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP.
