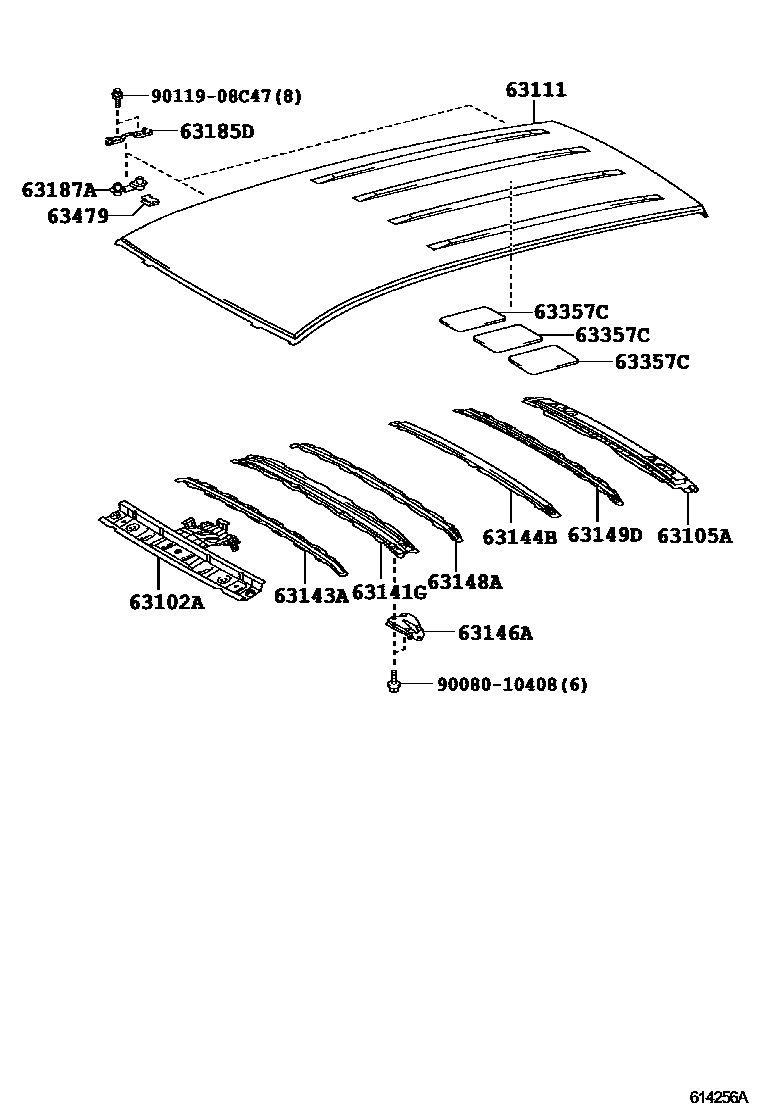

Toyota RAV4 EV — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R901iQEA38201204

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R010iQEA38201204

63111PANEL, ROOF

main63111-0R041iQEA38201204

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0R010iQEA38201204

63143AREINFORCEMENT, ROOF PANEL

main63143-0R010iQEA38201204

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R010iQEA38201204

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-0R010×2iQEA38201204

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0R020iQEA38201204

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R010iQEA38201204

63185DBRACKET, ROOF RACK, FRONT

main63185-0R010×4iQEA38201204-201405

main63185-42020×4iQEA38201405-201408

(J)

63187ABRACKET, ROOF RACK, REAR

main63187-0R010×4iQEA38201204

63357CSILENCER, ROOF

main63357-0R010×3iQEA38201204

63479RETAINER, ROOF INNER RACK

main63479-0E010×4iQEA38201204

9008010408

main90080-10408

9011908C47

main90119-08C47

15 parts on this diagram · 1 diagram in section
