Toyota RAV4 EV — REAR WASHER

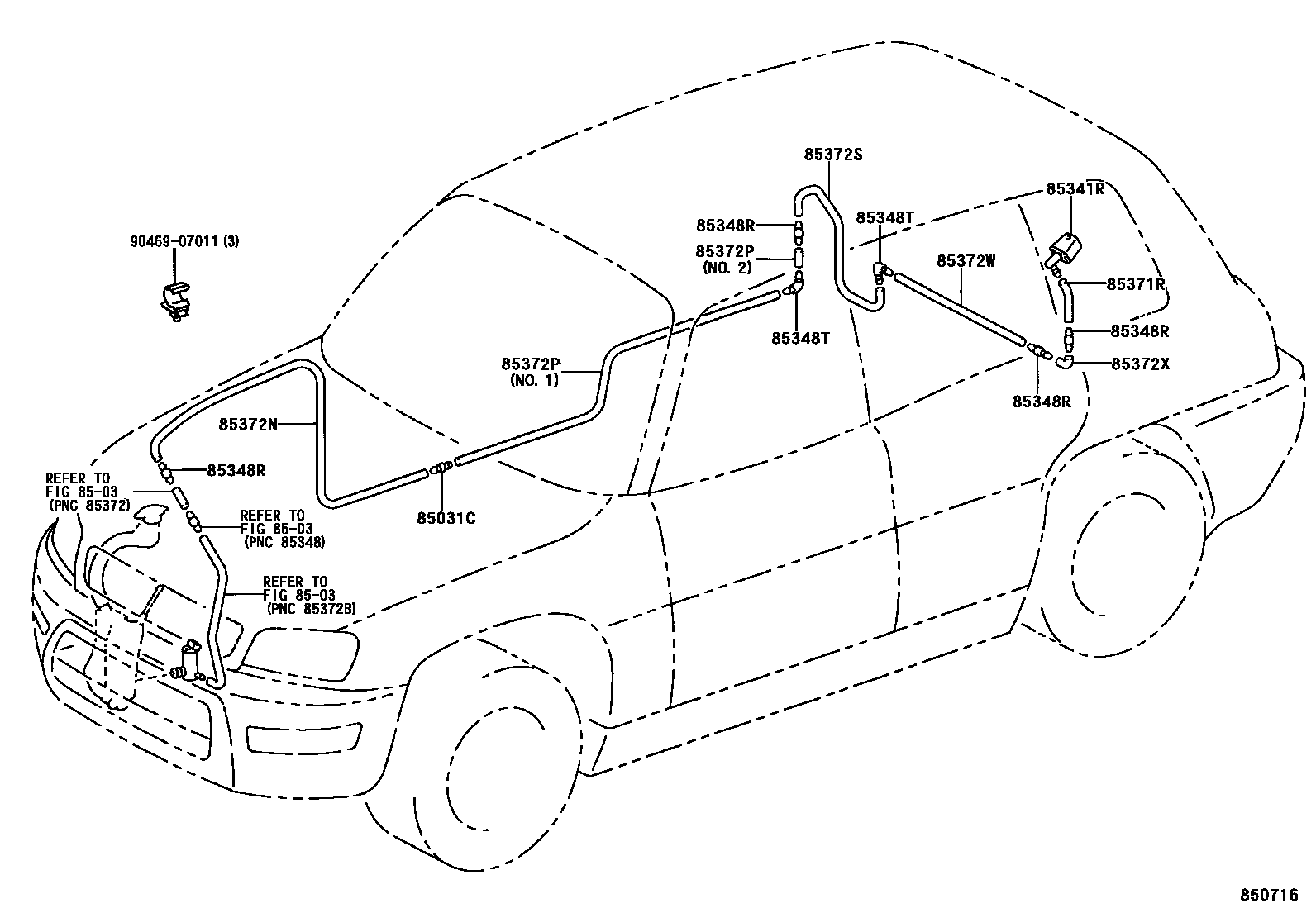

Parts diagram
8503WINDSHIELD WASHER
→ Go to FIG 85-03
85031CVALVE SUB-ASSY, WASHER
main85375-12520i199911
85341RNOZZLE ASSY, WASHER
main85395-42010i199709-199911
85348RJOINT, REAR WASHER HOSE, NO.1
main85349-89122×4i199709-199911
85348TJOINT, REAR WASHER HOSE, NO.2
main85355-20200×2i199709-199911
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90446-07001i199709-199911
L=1800(*H,L=280)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90446-07001i199911
L=1800(*H,L=1770)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i199709-199911
L=1450(*H,L=40),NO.2
main90446-07001i199709-199911
L=1800(*H,L=1760),NO.1
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
main90446-07001i199911
L=1800(*H,L=790)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
main90446-07001i199709-199911
L=1800(*H,L=630)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
main90099-33080i199709-199911
L=1450(*H,L=40)
9046907011
main90469-07011

12 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota RAV4 EV
