Toyota RAV4 EV — MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-42010i201204

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-42010i201204

75543CMOULDING, WINDSHIELD, OUTSIDE NO.2 RH

main75543-42010i201204

75544AMOULDING, WINDSHIELD, OUTSIDE NO.2 LH

main75544-42010i201204

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-42021i201204-201306

main75548-42040i201306

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-42021i201204-201306

main75549-42040i201306

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-0R010i201204

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-0R010i201204

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-0R010i201204

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-0R010i201204

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-02020i201204

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-02020×2i201204

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75561-02020i201204

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-02020×2i201204-201305

main75596-35030×2i201305

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-02020×2i201204-201305

main75596-35030×2i201305

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0R011i201204

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0R011i201204

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0R011i201204

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0R011i201204

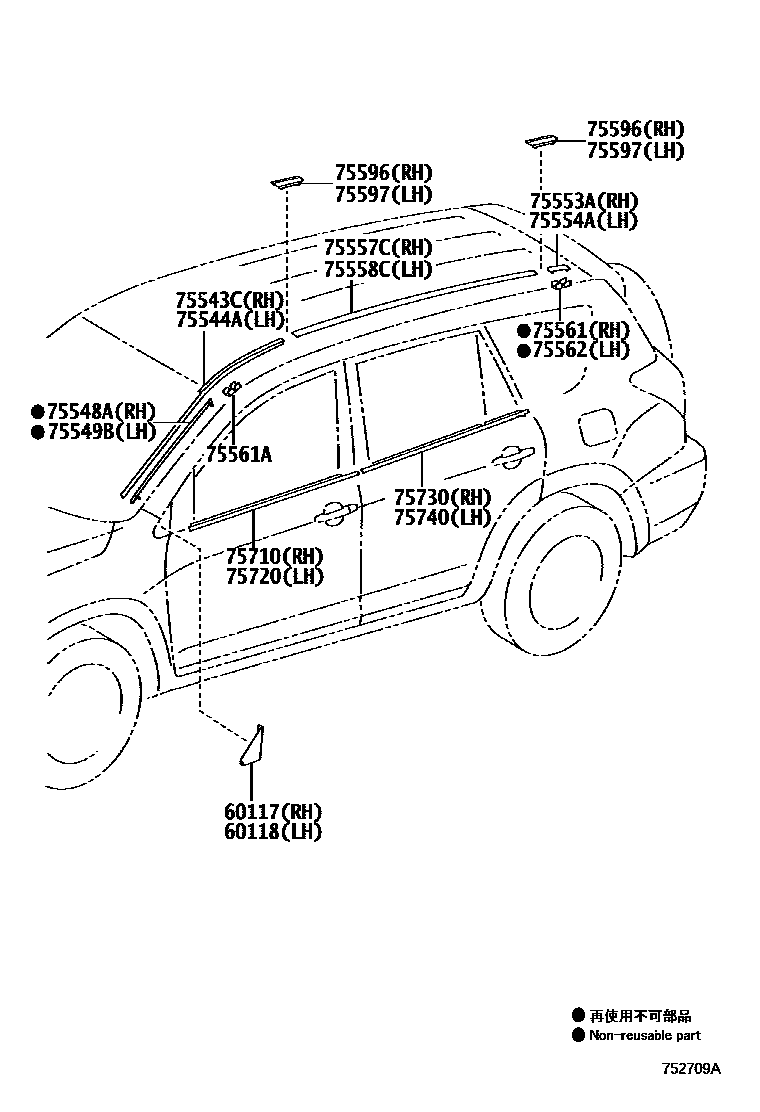

19 parts on this diagram · 1 diagram in section

MOULDING for Toyota RAV4 EV

This section contains 19 genuine Toyota parts for the MOULDING system of the Toyota RAV4 EV. Key components include: COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, MOULDING, WINDSHIELD, OUTSIDE NO.2 RH, MOULDING, WINDSHIELD, OUTSIDE NO.2 LH, FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1.
