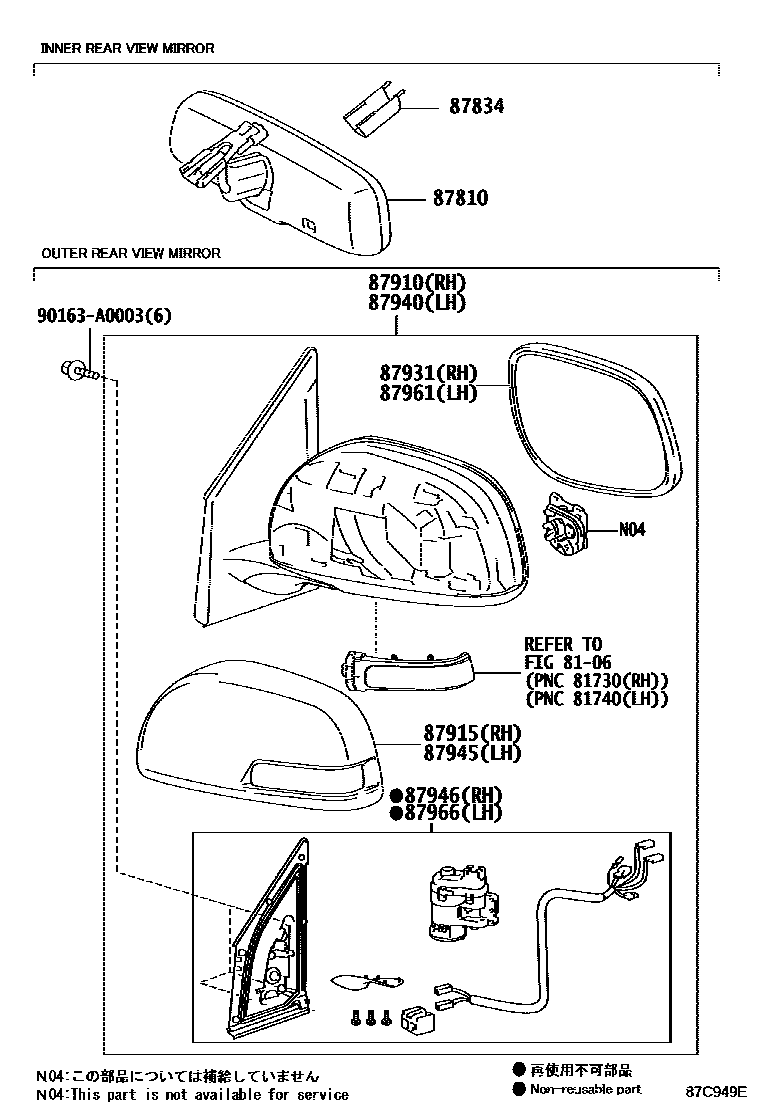

Toyota RAV4 EV — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAYISH BLUE M.M.,8V5
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAYISH BLUE M.M.,8V5
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAYISH BLUE M.M.,8V5
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAYISH BLUE M.M.,8V5
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
90163A0003
main90163-A0003
12 parts on this diagram · 1 diagram in section
