Toyota RAV4 EV — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12240-B3i199709

LT.GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-01020i199709-199911

(L)

main74372-30030i199709-199911

(J)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B4i199709

LT.GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-42150i199709-199911

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-42180i199709-199911

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-42160i199709-200003

main87910-42500-A0i199709-200008

WHITE,056

main87910-42500-A2i200008

SUPER WHITE 2,040

main87910-42500-B0i199709-200008

SILVER ME,199

main87910-42500-B2i200008

SILVER ME.,1C0

main87910-42500-D0i199709-199810

WINE RED MC,3J8

main87910-42500-D1i199810-200003

RED MC.,3M8

main87910-42500-G0i199709-200003

DK.GREEN M.M.,6P3

main87910-42500-J1i199709-200003

BLUE M.M.,8L5

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-42190i199709-200003

main87940-42470-A0i199709-200008

WHITE,056

main87940-42470-A2i200008

SUPER WHITE 2,040

main87940-42470-B0i199709-200008

SILVER ME,199

main87940-42470-B2i200008

SILVER ME.,1C0

main87940-42470-D0i199709-199810

WINE RED MC,3J8

main87940-42470-D1i199810-200003

RED MC.,3M8

main87940-42470-G0i199709-200003

DK.GREEN M.M.,6P3

main87940-42470-J1i199709-200003

BLUE M.M.,8L5

9010506216

main90105-06216

9014950067

main90149-50067

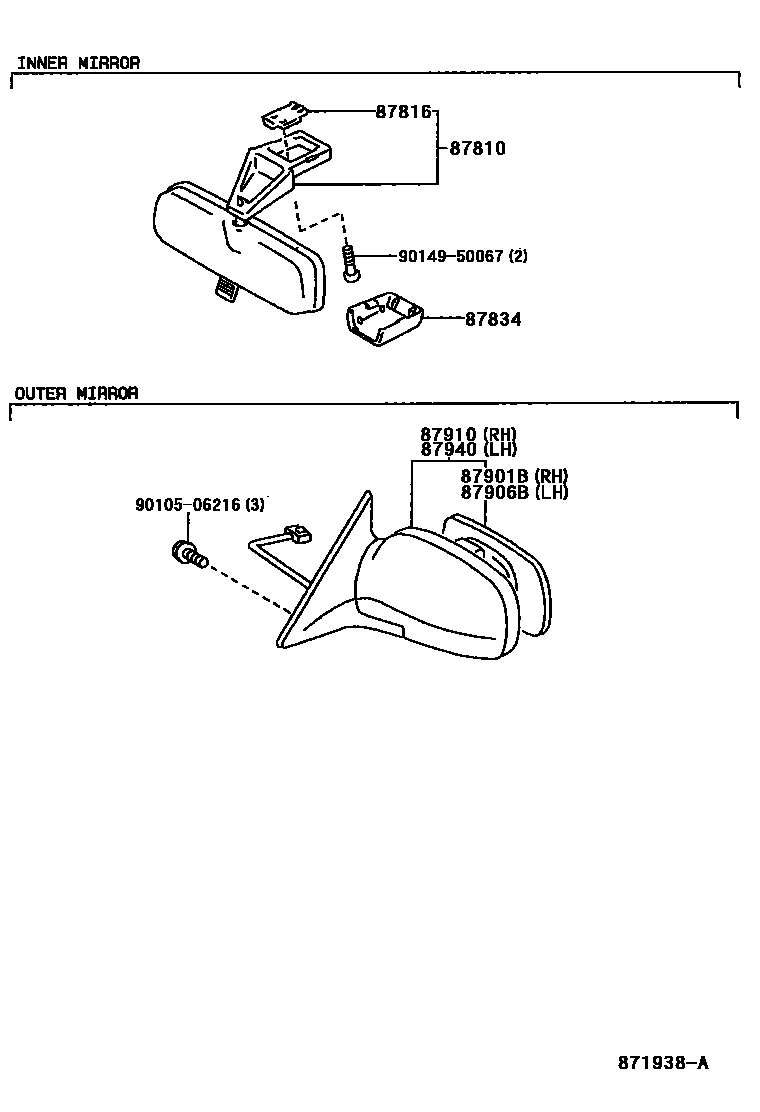

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAV4 EV

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota RAV4 EV. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
