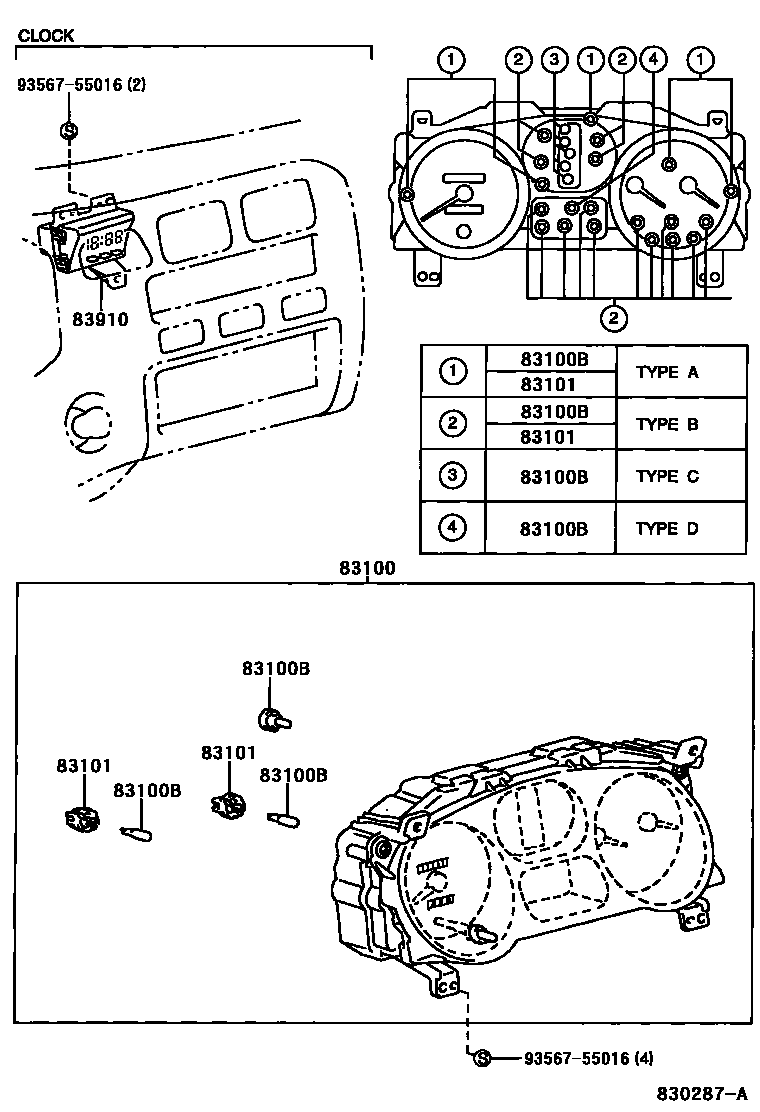

Toyota RAV4 EV — METER

83100METER ASSY, COMBINATION

main83800-42750iBEA11199709

83100BBULB, COMBINATION METER, NO.1

main83119-24070×5iBEA11199911

12V 1.4W W(SOCKET),TYPE C:REFER TO ILLUSTRATION

main83119-42010×5iBEA11199911

14V 3.0W,W(CAP),TYPE A:REFER TO ILLUSTRATION

main83120-24010iBEA11199911

13.5V,W(SOCKET),TYPE D:REFER TO ILLUSTRATION

main90981-11018×15iBEA11199911

12V 1.2W W/O SOCKET,TYPE B:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×15iBEA11199911

TYPE B:REFER TO ILLUSTRATION

main83101-32020×5iBEA11199709-199911

TYPE A:REFER TO ILLUSTRATION

83910CLOCK ASSY

main83910-42010iBEA11199709

9356755016

main93567-55016

5 parts on this diagram · 1 diagram in section
