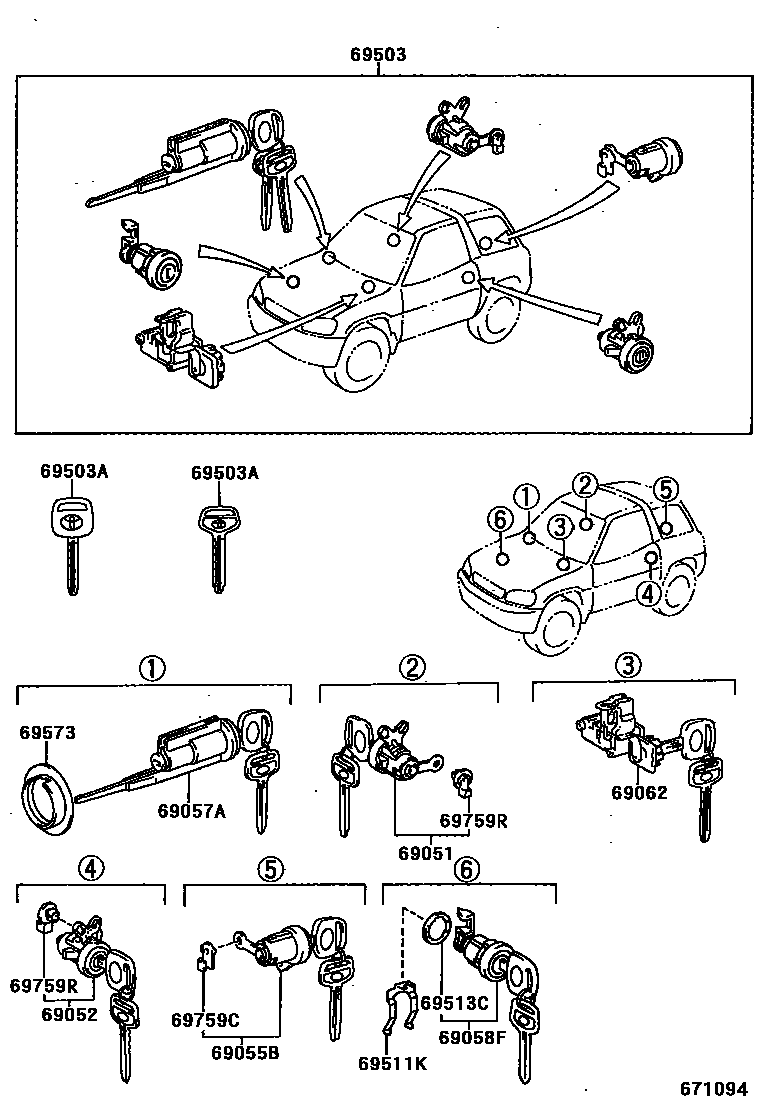

Toyota RAV4 EV — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-42060i199709-199911

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-42060i199709-199911

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-42030i199709-199911

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12400i199709-199911

69058FCYLINDER & KEY SET, ELECTRIC VEHICLE CHARGER LID

main69058-42030i199709-199911

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-42030i199709-199911

69503CYLINDER SET, LOCK

main69005-42160i199812

main69005-42180i199709-199911

69503AKEY, BLANK

main90999-00185×2i199709-199911

MASTER KEY,W(*68)

main90999-00187i199709-199911

SUB KEY,W(*68)

69511KRETAINER, ELECTRIC VEHICLE CHARGER LOCK CYLINDER, NO.1

main69511-32010i199709-199911

69513CPAD, ELECTRIC VEHICLE CHARGER LID LOCK

main69513-32010i199709-199911

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-42020i199709-199911

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080i199709-199911

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i199709-199911

main69759-22090i199709-199911

13 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota RAV4 EV

This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota RAV4 EV. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, ELECTRIC VEHICLE CHARGER LID.
