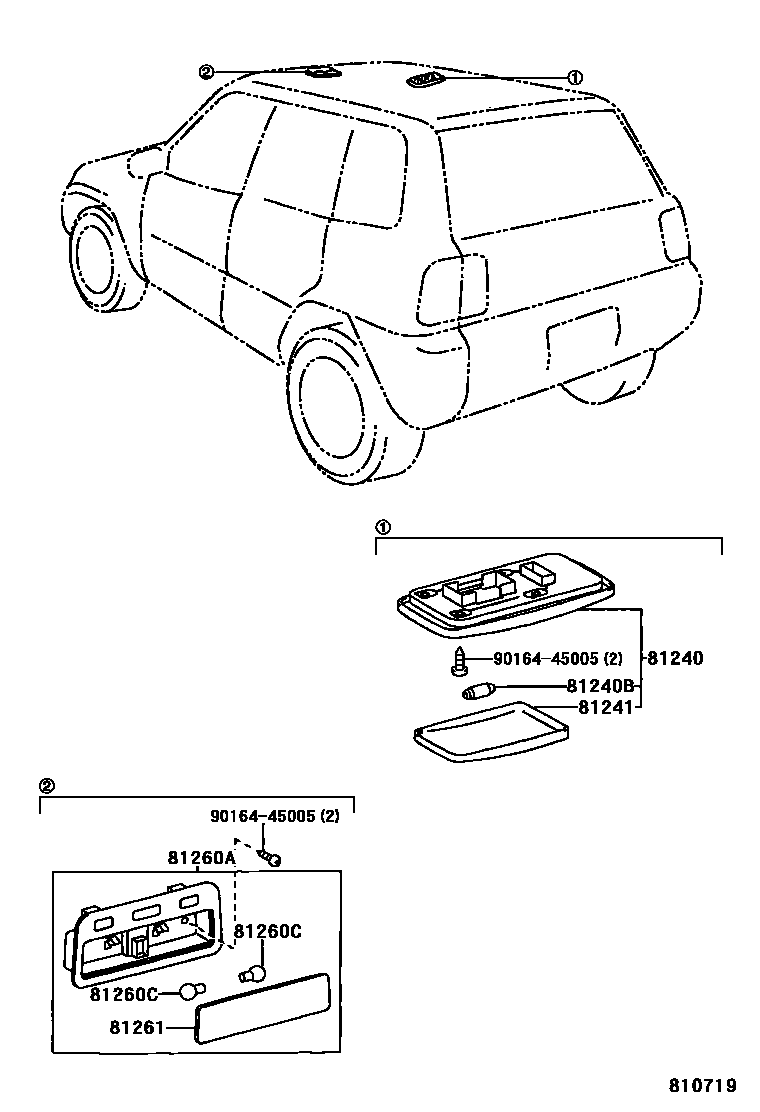

Toyota RAV4 EV — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B3i199807

LT.GRAY,TRIM1#

main81240-42010-B0i199709-199807

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199709-199911

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020i199911

81260ALAMP ASSY, MAP

main81260-14080-B3i199709

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2i199709-199911

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-14080i199709-199911

9016445005

main90164-45005

7 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota RAV4 EV

This section contains 7 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RAV4 EV. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
