Toyota RAV4 EV — INSTRUMENT PANEL & GLOVE COMPARTMENT

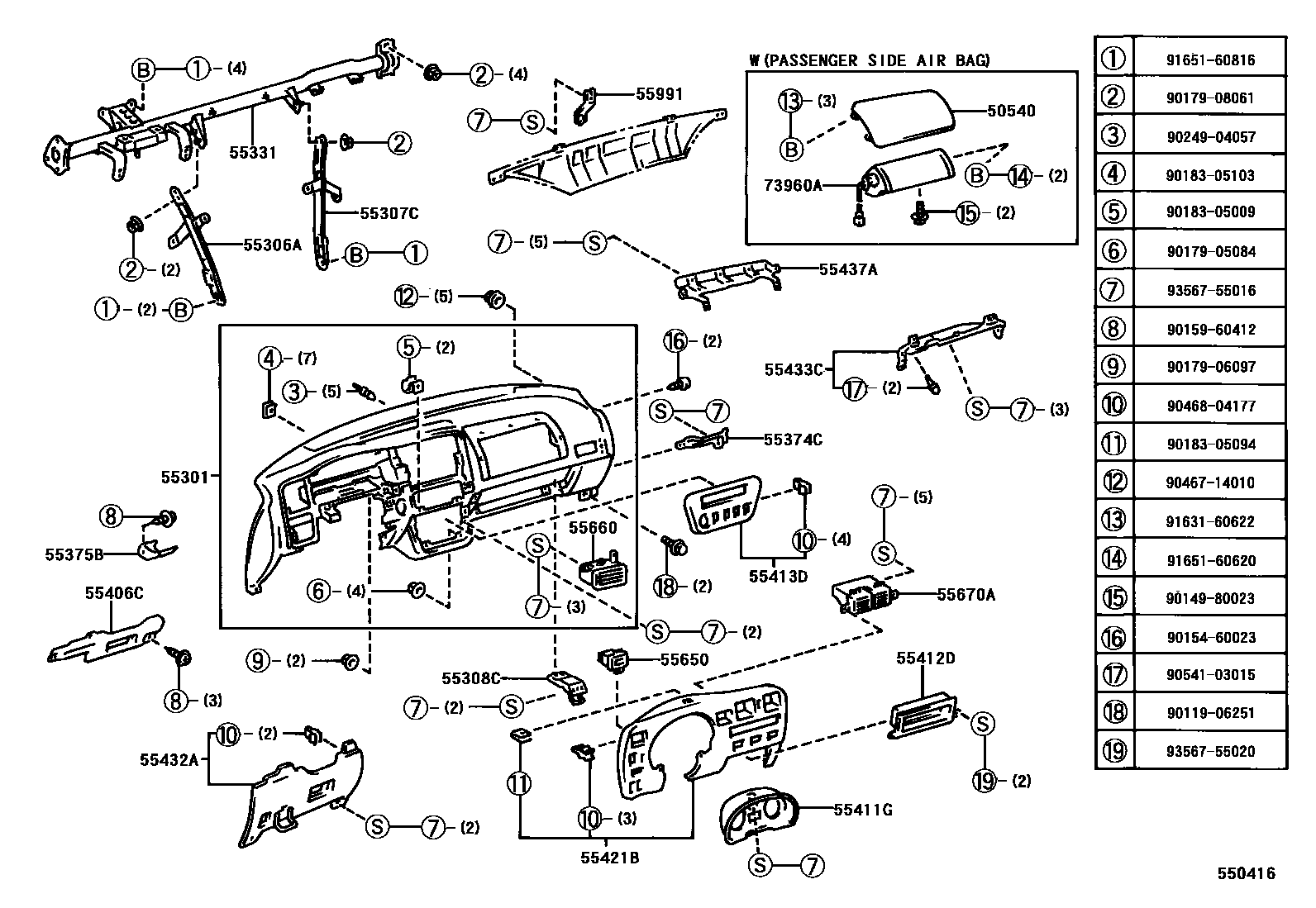

Parts diagram

50540DO0R ASSY, AIRBAG PASSENGER

main50540-42040-B0i199709

SHADOW GRAY,TRIM1#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-42050-B0i199709

SHADOW GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42030i199709-199911

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42040i199709-199911

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-42040i199709-199911

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42080i199709-199911

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-42020i199709-199911

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-42020i199709-199911

55406CINSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55406-42010i199709-199911

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-42020i199709-199911

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-42020-C0i199709

BLACK,TRIM1#

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-42020-B1i199709

SHADOW GRAY,TRIM1#

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-42051-B0i199709

DARK GRAY,TRIM1#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-42060-B0i199709

SHADOW GRAY,TRIM1#

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-42010i199709-199911

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-42020i199709-199911

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-42020-C0i199709-199902

BLACK,TRIM1#

main55650-42021-C0i199904

BLACK,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-42020-B1i199709

SHADOW GRAY,TRIM1#

55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER

main55670-42010-C0i199709-199902

BLACK,TRIM1#

main55670-42011-C0i199904

BLACK,TRIM1#

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-42010i199709-199911

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W191i199709-199911

9011906251

main90119-06251

9014980023

main90149-80023

9015460023

main90154-60023

9015960412

main90159-60412

9017905084

main90179-05084

9017906097

main90179-06097

9017908061

main90179-08061

9018305009

main90183-05009

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714010

main90467-14010

9046804177

main90468-04177

9054103015

main90541-03015

9163160622

main91631-60622

9165160620

main91651-60620

9165160816

main91651-60816

9356755016

main93567-55016

9356755020

main93567-55020

40 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RAV4 EV

This section contains 64 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RAV4 EV. Key components include: DO0R ASSY, AIRBAG PASSENGER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
