Toyota RAV4 EV — INSIDE TRIM BOARD

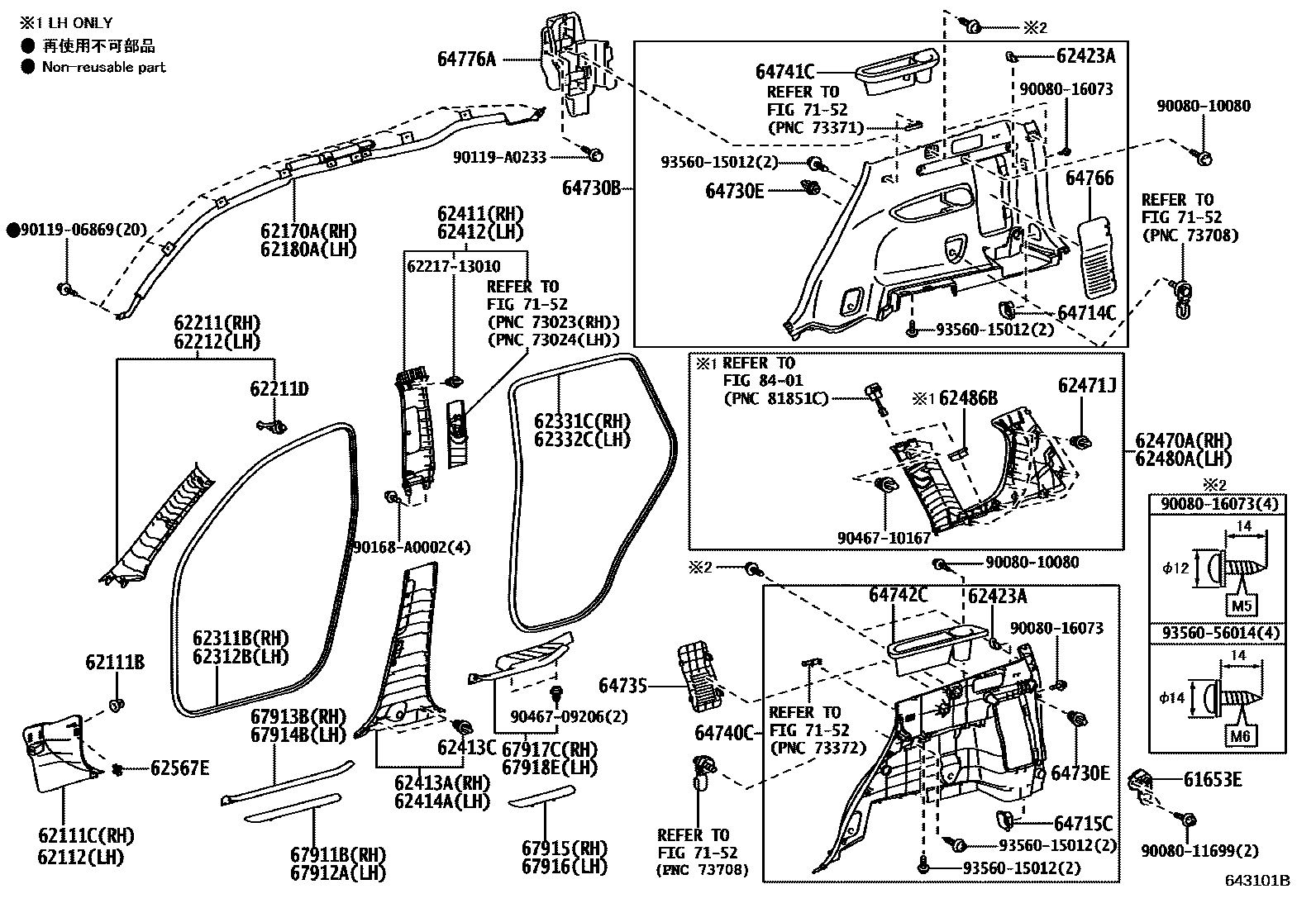

Parts diagram
61653EBRACKET, DECK SIDE TRIM
main61653-0R010i201204
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06155×2i201204
62111CBOARD, COWL SIDE TRIM, RH
main62111-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
main62112-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0R010i201204
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0R010i201204
62211GARNISH, FRONT PILLAR, RH
main62210-0R022-B0i201204-201408
GRAY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main62217-42030×4i201204
62212GARNISH, FRONT PILLAR, LH
main62220-0R022-B0i201204-201408
GRAY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62411GARNISH, CENTER PILLAR, RH
main62410-0R010-B0i201204-201408
GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
main62420-0R010-B0i201204-201408
GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×4i201204
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0R010-B0i201204-201408
DK.GRAY,TRIM1#
62423AHOOK, SIDE WINDOW GARNISH
main62423-0R010-B0×2i201204-201408
DK.GRAY,TRIM1#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-0R010-B0i201204-201408
GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161×14i201204
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-0R070-B0i201204-201408
GRAY,TRIM1#
62486BRETAINER, ROOF SIDE INNER GARNISH, LH
main62486-0R010i201204-201408
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-0R010×2i201204
64714CCOVER, DECK SIDE TRIM, RH
main64714-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64715CCOVER, DECK SIDE TRIM, LH
main64715-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
main90467-10161×8i201204
64735COVER, DECK TRIM SIDE SERVICE HOLE
main64735-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64741CBOX, DECK SIDE TRIM, RH
main64741-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64742CBOX, DECK SIDE TRIM, LH
main64742-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64766-0R010-B0i201204-201408
DK.GRAY,TRIM1#
64776ASPACER, TOOL BAG CASE
main64773-0R030i201204
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67911-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-0R010-B0i201204-201408
DK.GRAY,TRIM1#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-0R010-B0i201204-201408
DK.GRAY,TRIM1#
7152SEAT BELT
→ Go to FIG 71-52
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9008010080
main90080-10080
9008011699
main90080-11699
9008016073
main90080-16073
9011906869
main90119-06869
90119A0233
main90119-A0233
90168A0002
main90168-A0002
9046709206
main90467-09206
9046710167
main90467-10167
9356015012
main93560-15012
9356056014
main93560-56014

55 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD for Toyota RAV4 EV

This section contains 55 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota RAV4 EV. Key components include: BRACKET, DECK SIDE TRIM, CLIP(FOR COWL SIDE TRIM), BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH, AIRBAG ASSY, CURTAIN SHIELD, RH.
