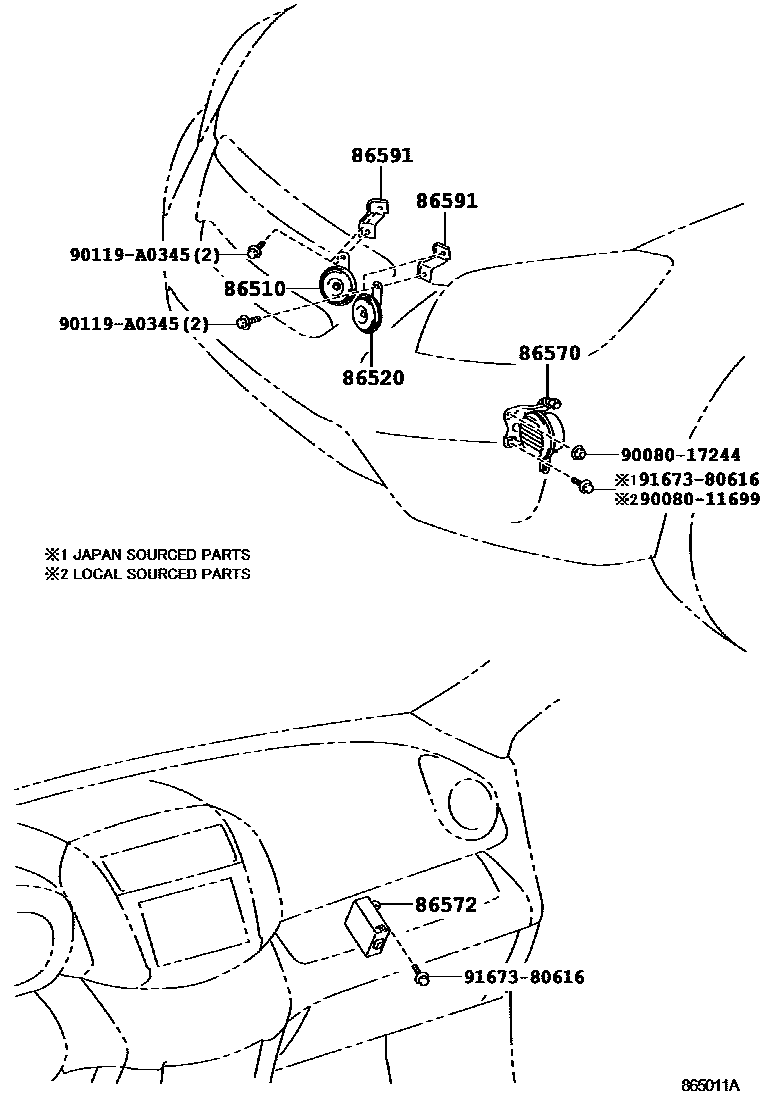

Toyota RAV4 EV — HORN
86510HORN ASSY, HIGH PITCHED
86520HORN ASSY, LOW PITCHED
86570SPEAKER ASSY, VEHICLE APPROACHING
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
86591BRACKET, HORN
9008011699
main90080-11699
9008017244
main90080-17244
90119A0345
main90119-A0345
9167380616
main91673-80616
9 parts on this diagram · 1 diagram in section
HORN for Toyota RAV4 EV
This section contains 9 genuine Toyota parts for the HORN system of the Toyota RAV4 EV. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER, BRACKET, HORN.
