Toyota RAV4 EV — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

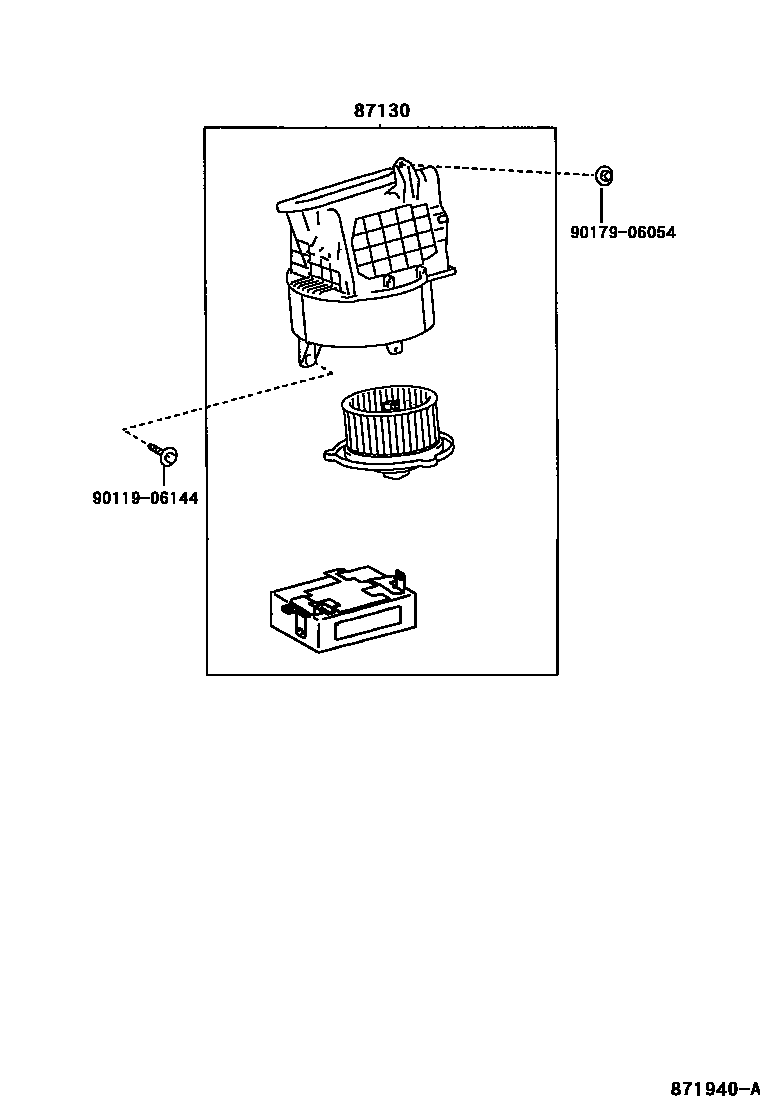

87130BLOWER ASSY, HEATER, FRONT

main87130-42030i199709-199712

main87130-42031i199712-199911

9011906144

main90119-06144

9017906054

main90179-06054

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER for Toyota RAV4 EV

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER system of the Toyota RAV4 EV. Key components include: BLOWER ASSY, HEATER, FRONT.
