Toyota RAV4 EV — HEATING & AIR CONDITIONING - COOLER PIPING

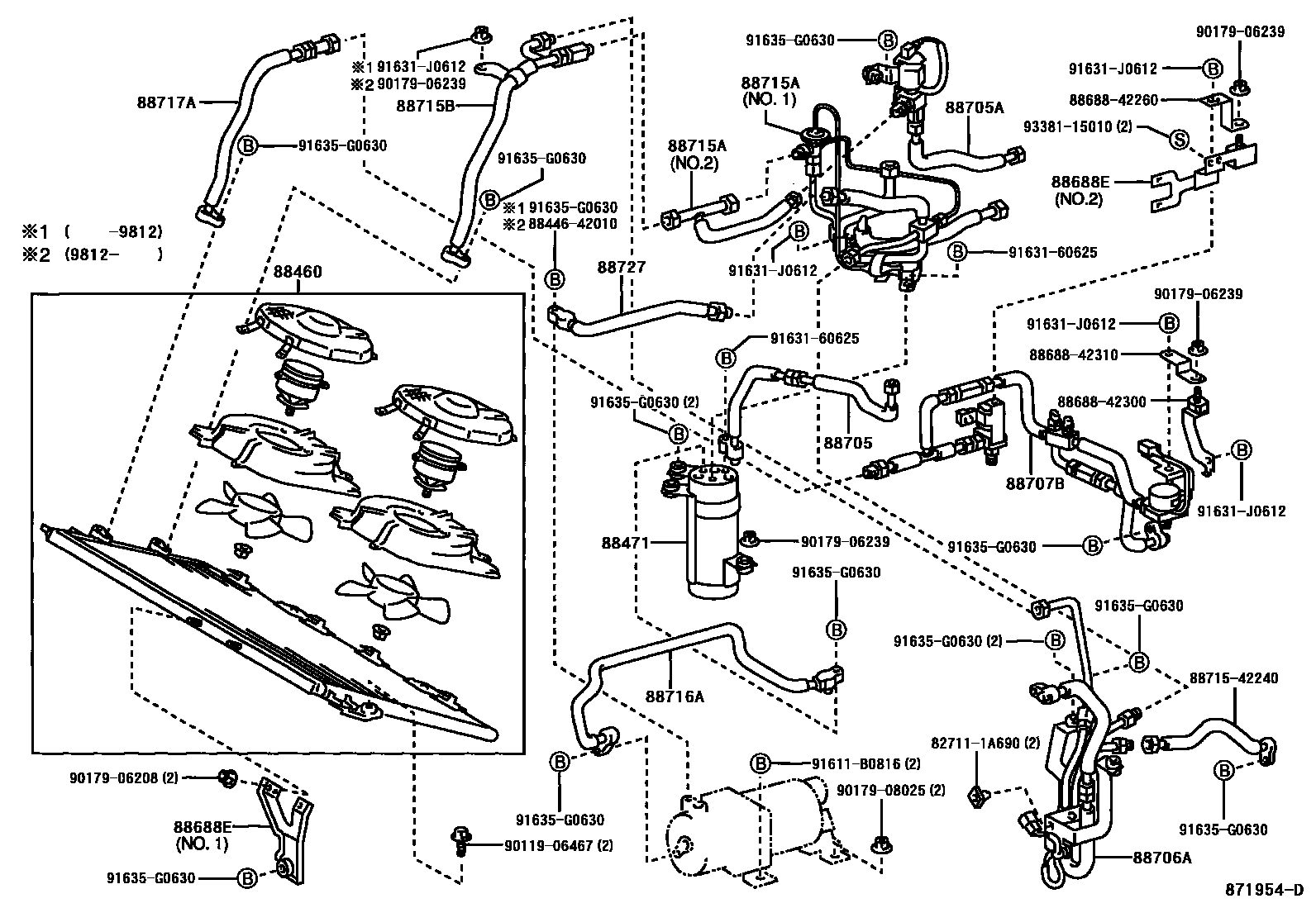

Parts diagram

88460CONDENSER ASSY, COOLER

main88460-42040i199709-199911

88471TANK, RECEIVER AIR CONDITIONER

main88470-42070i199709

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-42220i199709

NO.1

main88688-42340i199709

NO.2

88705PIPE SUB-ASSY, DISCHARGE

main88705-42060i199709

88705ATUBE SUB-ASSY, DISCHARGE

main88705-42070i199709

88706ATUBE SUB-ASSY, LIQUID, A

main88706-42110i199709-199712

main88706-42111i199712-200209

main88706-42250i200209

88707BTUBE SUB-ASSY, SUCTION, B

main88707-42040i199709

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88707-42060i199709

NO.1

main88715-42070i199709

NO.2

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-42080i199709-199712

main88715-42081i199712-199812

main88715-42270i199812-200209

main88715-42290i200209

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-42120i199709

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-42140i199709-199812

main88717-42150i199812

88727TUBE, SUCTION, NO.2

main88727-42040i199709

827111A690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A690

8844642010BOLT, IDLE PULLEY

main88446-42010

8868842260BRACKET, COOLER DIAPHRAGM

main88688-42260

8868842300BRACKET, COOLER DIAPHRAGM

main88688-42300

8868842310BRACKET, COOLER DIAPHRAGM

main88688-42310

8871542240

main88715-42240

9011906467

main90119-06467

9017906208

main90179-06208

9017906239

main90179-06239

9017908025

main90179-08025

91611B0816

main91611-B0816

9163160625

main91631-60625

91631J0612

main91631-J0612

91635G0630

main91635-G0630

9338115010

main93381-15010

27 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota RAV4 EV

This section contains 31 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota RAV4 EV. Key components include: CONDENSER ASSY, COOLER, TANK, RECEIVER AIR CONDITIONER, BRACKET, COOLER REFRIGERANT HOSE, NO.1, PIPE SUB-ASSY, DISCHARGE, TUBE SUB-ASSY, DISCHARGE.
