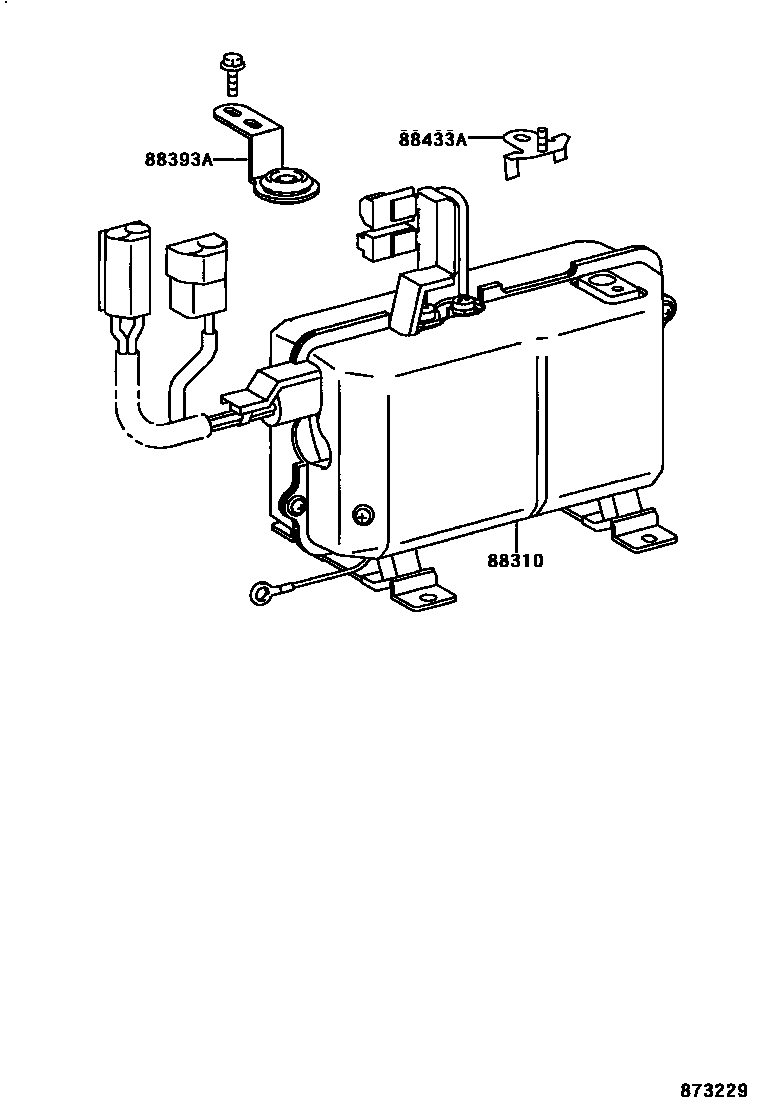

Toyota RAV4 EV — HEATING & AIR CONDITIONING - COMPRESSOR

88310COMPRESSOR ASSY, W/PULLEY

main88310-42110i199709-199812

main88310-42130i199812-199911

88393APLATE, STOPPER

main88393-42010i199812

88433ASTAY, COMPRESSOR

main88433-42010i199812

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota RAV4 EV

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota RAV4 EV. Key components include: COMPRESSOR ASSY, W/PULLEY, PLATE, STOPPER, STAY, COMPRESSOR.
