Toyota RAV4 EV — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-42090i199709-199911

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i199709-199911

12V 65W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2i199709-199911

12V 51W

81135UNIT ASSY, HEADLAMP, RH

main81105-42090i199709-199911

81150HEADLAMP ASSY, LH

main81150-42090i199709-199911

81175UNIT ASSY, HEADLAMP, LH

main81106-42090i199709-199911

9010906289

main90109-06289

7 parts on this diagram · 1 diagram in section

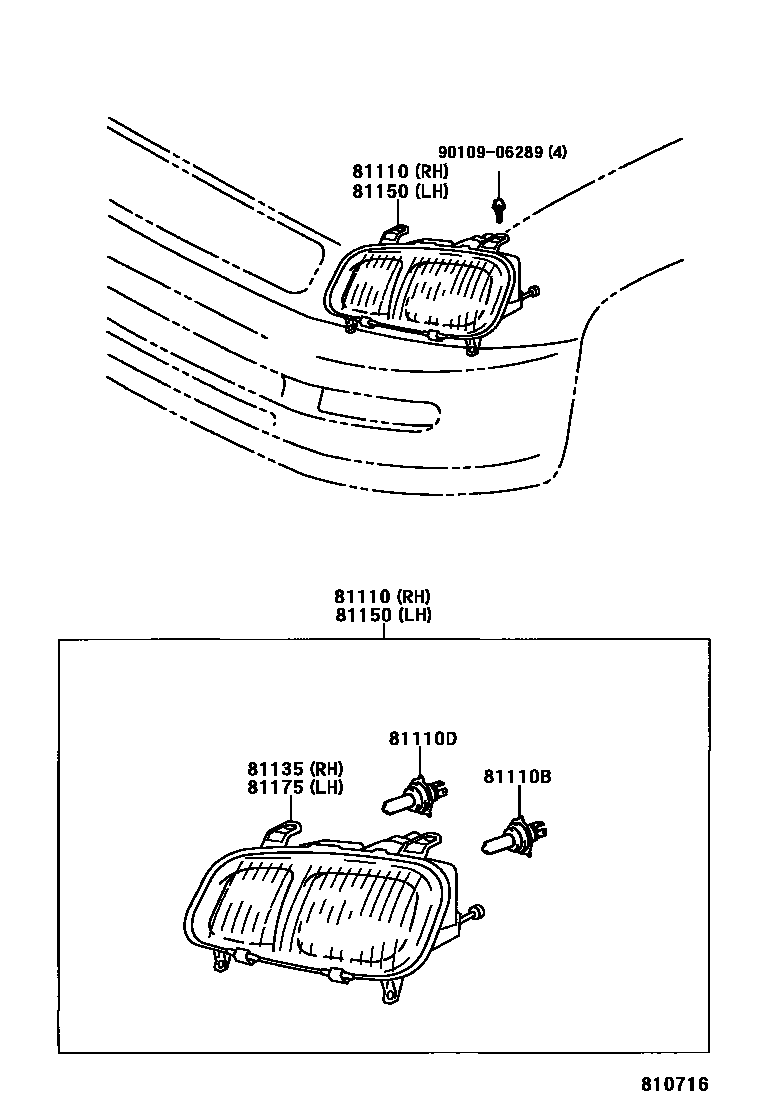

HEADLAMP for Toyota RAV4 EV

This section contains 7 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4 EV. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, HEADLAMP ASSY, LH.
