Toyota RAV4 EV — FRONT STEERING GEAR & LINK

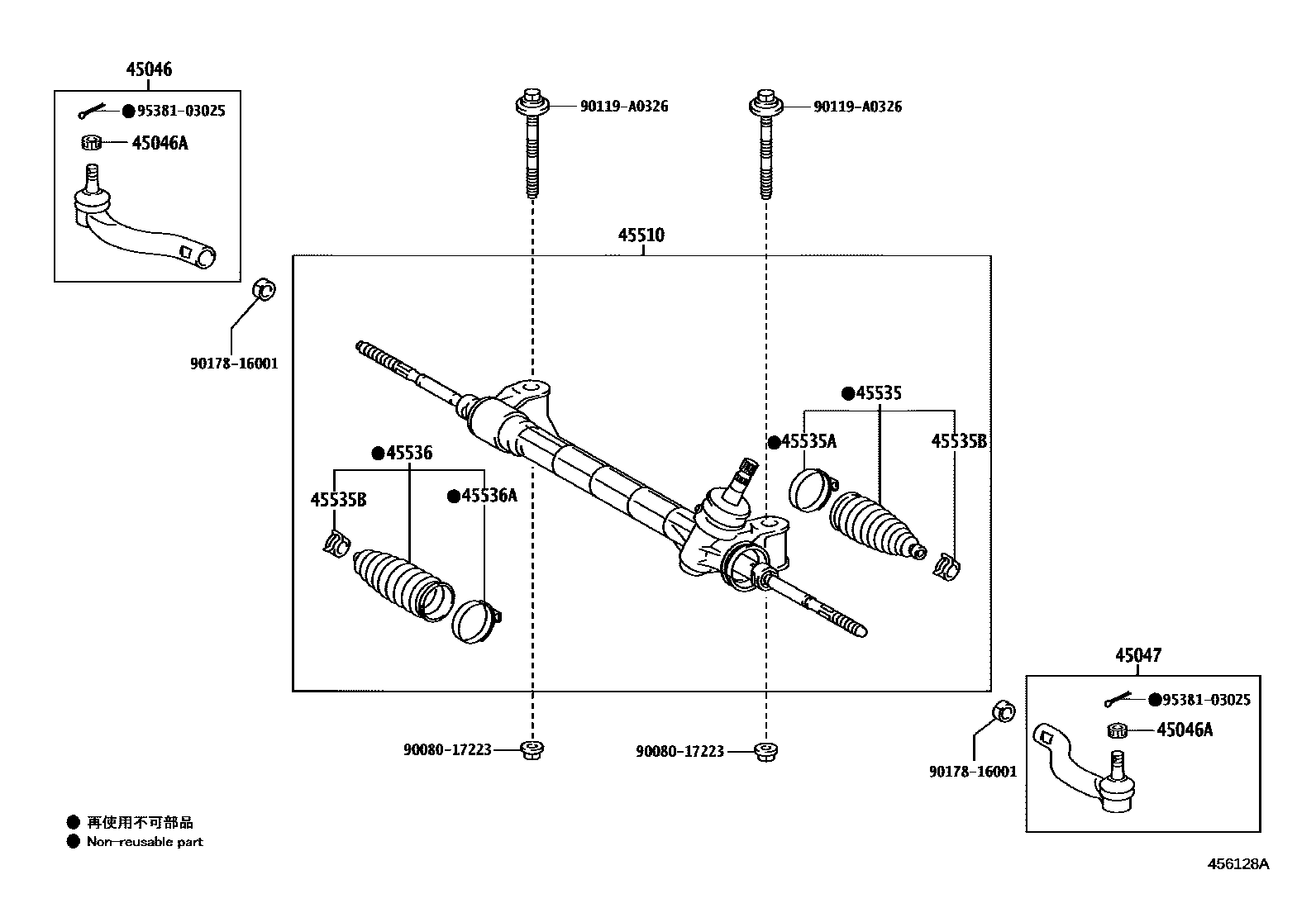

Parts diagram

45046END SUB-ASSY, TIE ROD, RH

main45046-09650i201204

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i201204

45047END SUB-ASSY, TIE ROD, LH

main45047-09310i201204

45510GEAR ASSY, STEERING

main45510-0R070i201404-201408

main45510-0R100i201204-201403

45535BOOT, STEERING RACK, NO.1

main45535-49025i201204

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-42010i201204

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42010×2i201204

45536BOOT, STEERING RACK, NO.2

main45535-49025i201204

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010i201204

9008017223

main90080-17223

90119A0326

main90119-A0326

9017816001

main90178-16001

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota RAV4 EV

This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota RAV4 EV. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.

Toyota RAV4 EV FRONT STEERING GEAR & LINK — Parts Diagram | EPC Data
