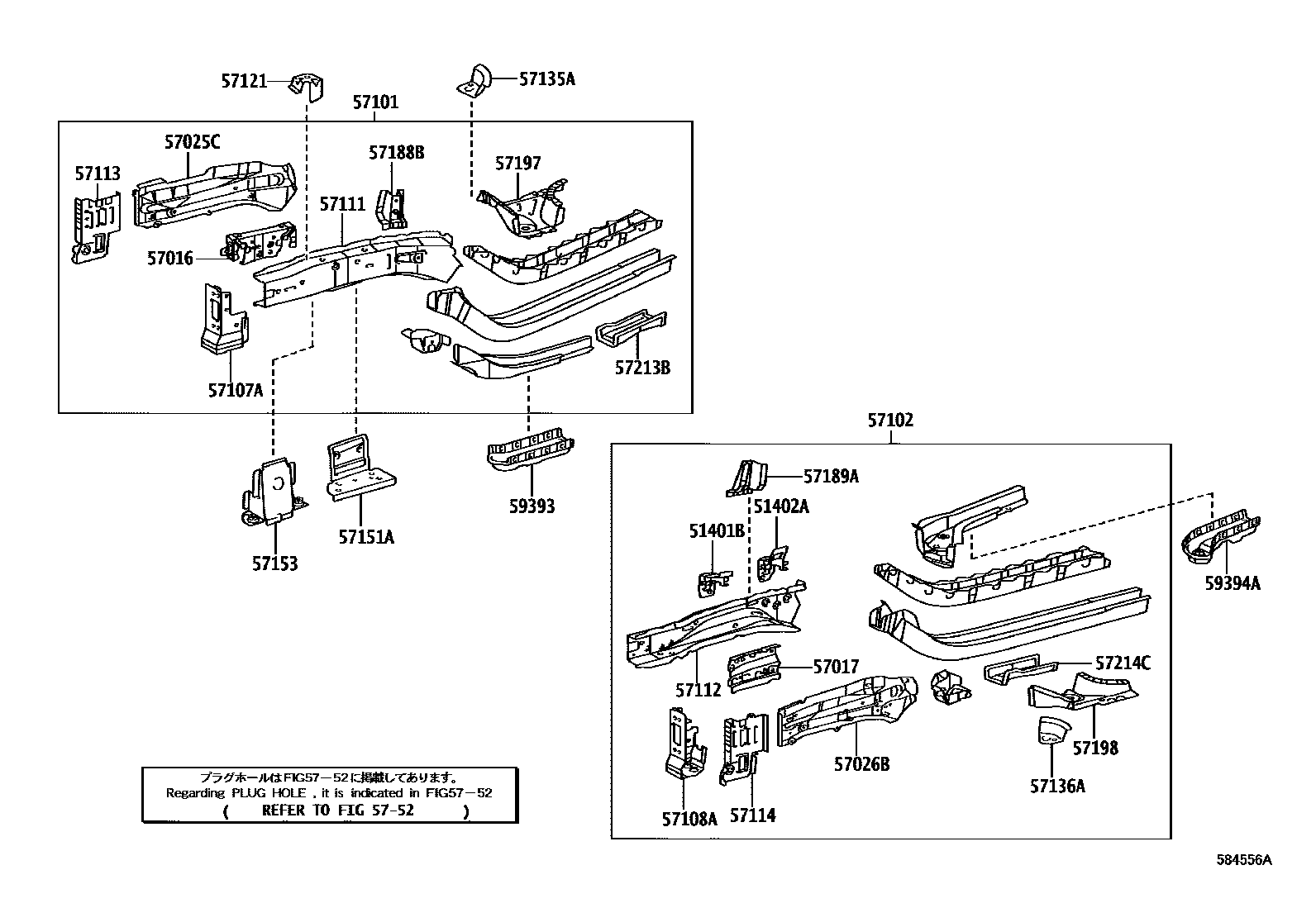

Toyota RAV4 EV — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-0R010i201204

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0R010i201204

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0R010i201204

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0R010i201204

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0R010i201204

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0R010i201204

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0R030i201204-201408

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0R040i201204-201408

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0R010i201204-201205

main57107-0R011i201206

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-0R010i201204-201205

main57108-0R011i201206

57111MEMBER, FRONT SIDE, RH

main57111-0R010i201204

57112MEMBER, FRONT SIDE, LH

main57112-0R011i201204

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0R010i201204

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0R010i201204

57121BRACKET, FRONT BODY MOUNTING, RH

main57121-0R010i201204-201408

57135ABRACKET, FRONT FLOOR SIDE, RH

main57135-0R010i201204-201408

57136ABRACKET, FRONT FLOOR SIDE, LH

main57136-0R010i201204-201408

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57153-0R010i201204-201408

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57154-0R010i201204-201408

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-0R010i201204

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-0R010i201204

57197BOX, TORQUE, FRONT RH

main57197-0R010i201204

57198BOX, TORQUE, FRONT LH

main57198-0R010i201204

57213BEXTENSION, FRONT SIDE MEMBER, NO.2 RH

main57217-0R010i201204

57214CEXTENSION, FRONT SIDE MEMBER, NO.2 LH

main57228-0R010i201204

5752

59393BRACKET, FLOOR STEP SUPPORT

main59503-0R010i201204-201408

59394ABRACKET, FLOOR STEP SUPPORT, NO.2

main59504-0R010i201204-201408

28 parts on this diagram · 2 diagrams in section
