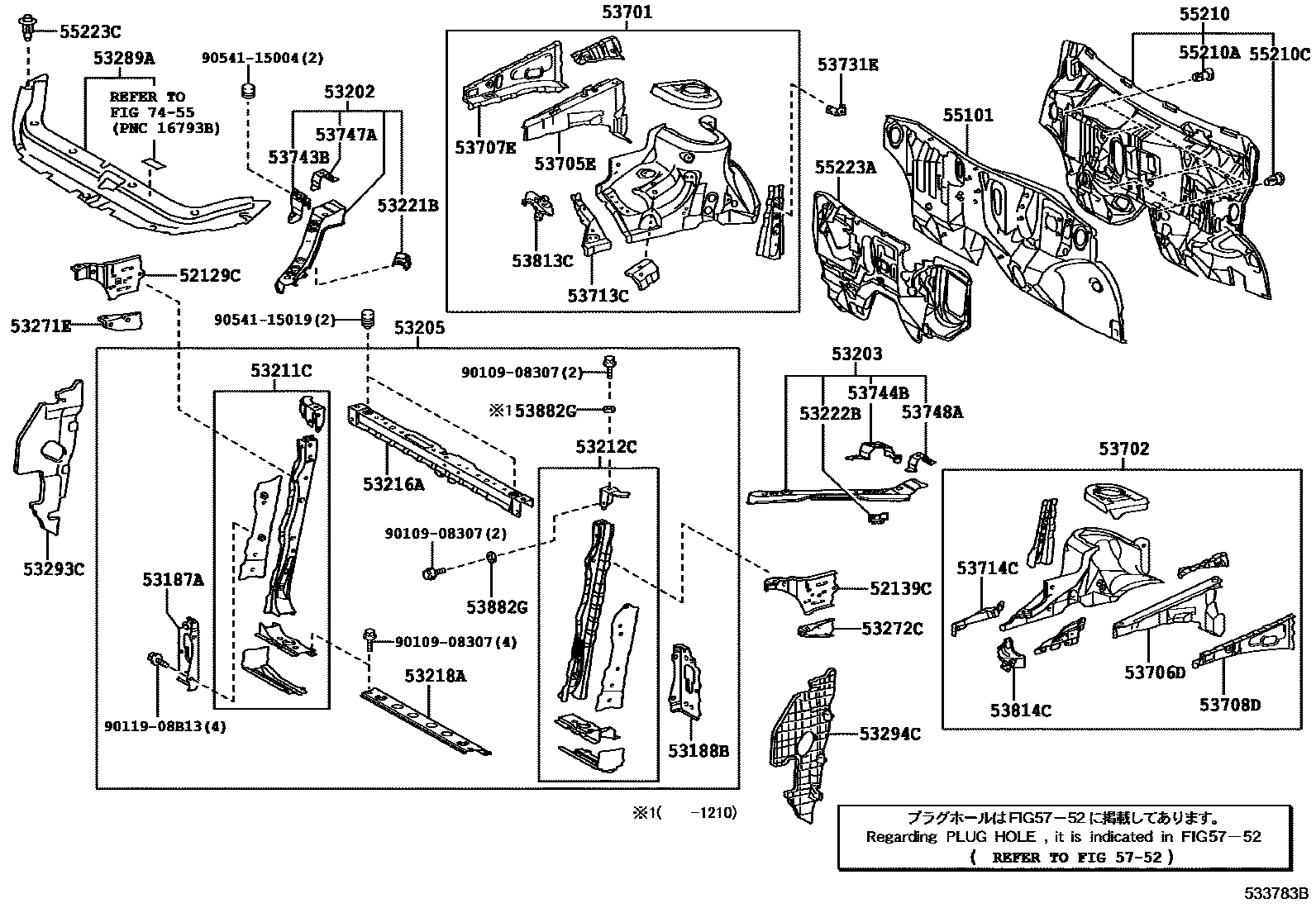

Toyota RAV4 EV — FRONT FENDER APRON & DASH PANEL
52129CARM, FRONT BUMPER, UPPER NO.2 RH
52139CARM, FRONT BUMPER, UPPER NO.2 LH
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53221BBRACE, RADIATOR SUPPORT APRON, RH
53222BBRACE, RADIATOR SUPPORT APRON, LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53731EPATCH, FRONT FENDER APRON
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53882GSEAL, FRONT FENDER
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55223CCLIP
BLACK
5752
7455
9010908307
main90109-08307
9011908B13
main90119-08B13
9054115004
main90541-15004
9054115019
main90541-15019
46 parts on this diagram · 1 diagram in section
