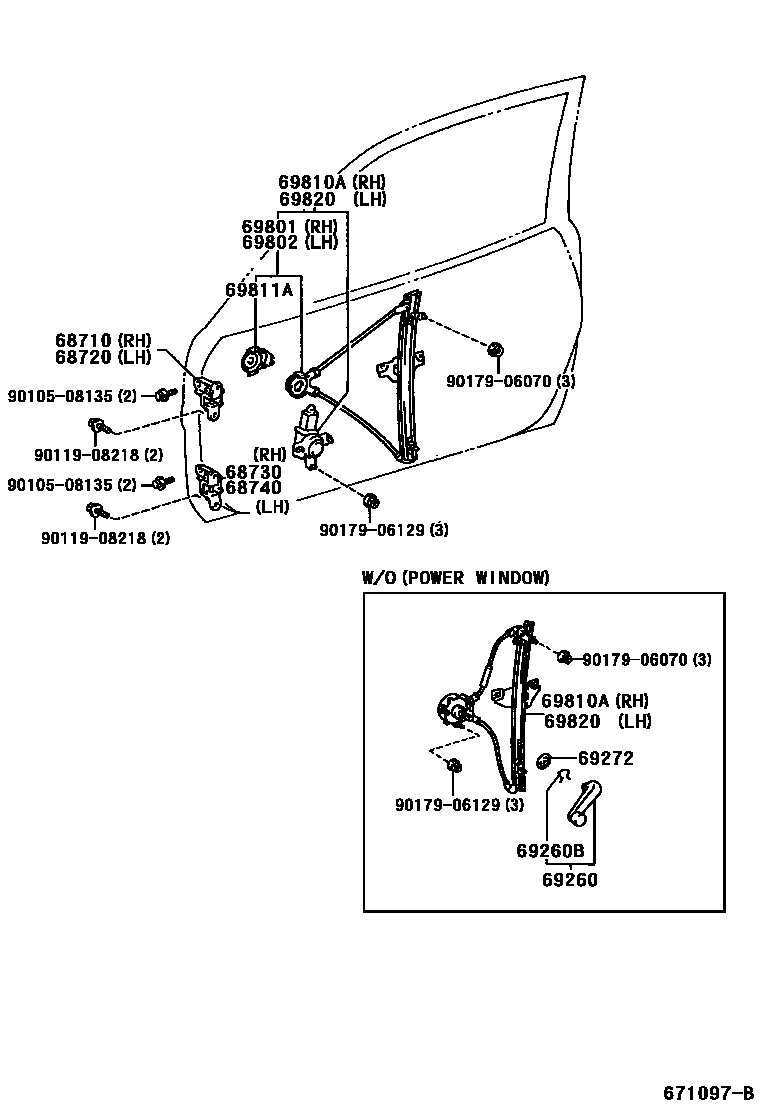

Toyota RAV4 EV — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22080i199709-199911

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22070i199709-199911

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22060i199709-199911

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22060i199709-199911

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B1×2i199709-200003

SHADOW GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2i199709-199911

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2i199709-200003

NATURAL WHITE,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-42021i199709-199911

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-42021i199709-199911

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-42031i199709-199911

main69810-42041i199709-199911

W(POWER WINDOW)

69811APLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-42010i199911

main69812-42010i199709-199911

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-42031i199709-199911

main69820-42100i199709-199911

W(POWER WINDOW)

9010508135

main90105-08135

9011908218

main90119-08218

9017906070

main90179-06070

9017906129

main90179-06129

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota RAV4 EV

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota RAV4 EV. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
