Toyota RAV4 EV — FRONT DOOR PANEL & GLASS

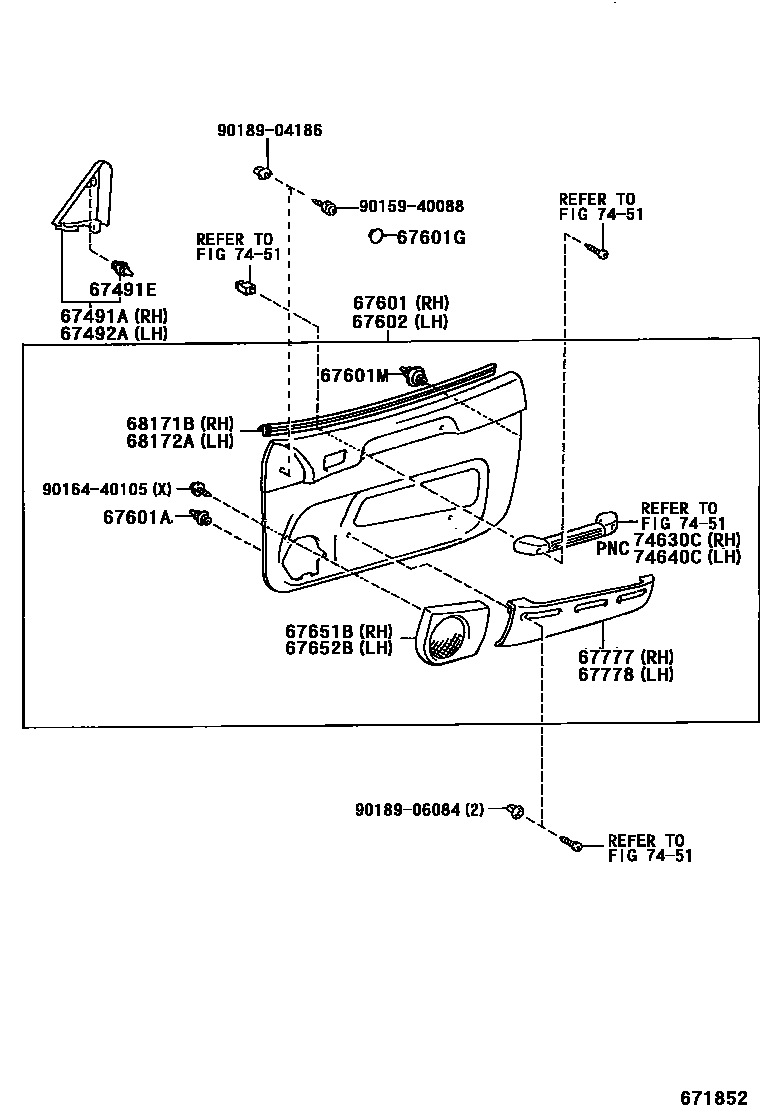

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-42020i199709-199911
67491ERETAINER, DOOR TRIM
main67771-30070×2i199709-199910
main90467-10167×2i199910-199911
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-42020i199709-199911
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-42360-B0i199709-199804
SHADOW GRAY,TRIM1#
main67610-42370-B0i199709-199804
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-42440-B0i199804
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-42450-B0i199804-200003
SHADOW GRAY,TRIM1#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-16080×8i199802-199911
WHITE
main67771-20110×20i199802-199911
GREEN
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01746-P0×2i199709
SHADOW GRAY,TRIM1#
67601MRETAINER, DOOR TRIM, NO.2
main67771-33020×2i199911
YELLOW GREEN
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-42360-B0i199709-199804
SHADOW GRAY,TRIM1#
main67620-42370-B0i199709-199804
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-42440-B0i199804
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-42450-B0i199804-200003
SHADOW GRAY,TRIM1#
67651BGRILLE, SPEAKER DOOR, RH
main67651-42010-B1i199709-200003
SHADOW GRAY,TRIM1#
main67651-42030-B1i199710
W(POWER WINDOW),SHADOW GRAY,TRIM1#
67652BGRILLE, SPEAKER DOOR, LH
main67652-42010-B1i199709-200003
SHADOW GRAY,TRIM1#
main67652-42030-B1i199710
W(POWER WINDOW),SHADOW GRAY,TRIM1#
67777POCKET, FRONT DOOR TRIM, RH
main67777-42020-B1i199709
SHADOW GRAY,TRIM1#
67778POCKET, FRONT DOOR TRIM, LH
main67778-42020-B1i199709
SHADOW GRAY,TRIM1#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-42020i199709-199911
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-42020i199709-199911
7451ARMREST & VISOR
→ Go to FIG 74-51
9015940088
main90159-40088
9016440105
main90164-40105
9018904186
main90189-04186
9018906084
main90189-06084

19 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota RAV4 EV

This section contains 46 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota RAV4 EV. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, EXTENSION, FRONT DOOR OUTSIDE PANEL REINFORCEMENT, FRONT RH.
