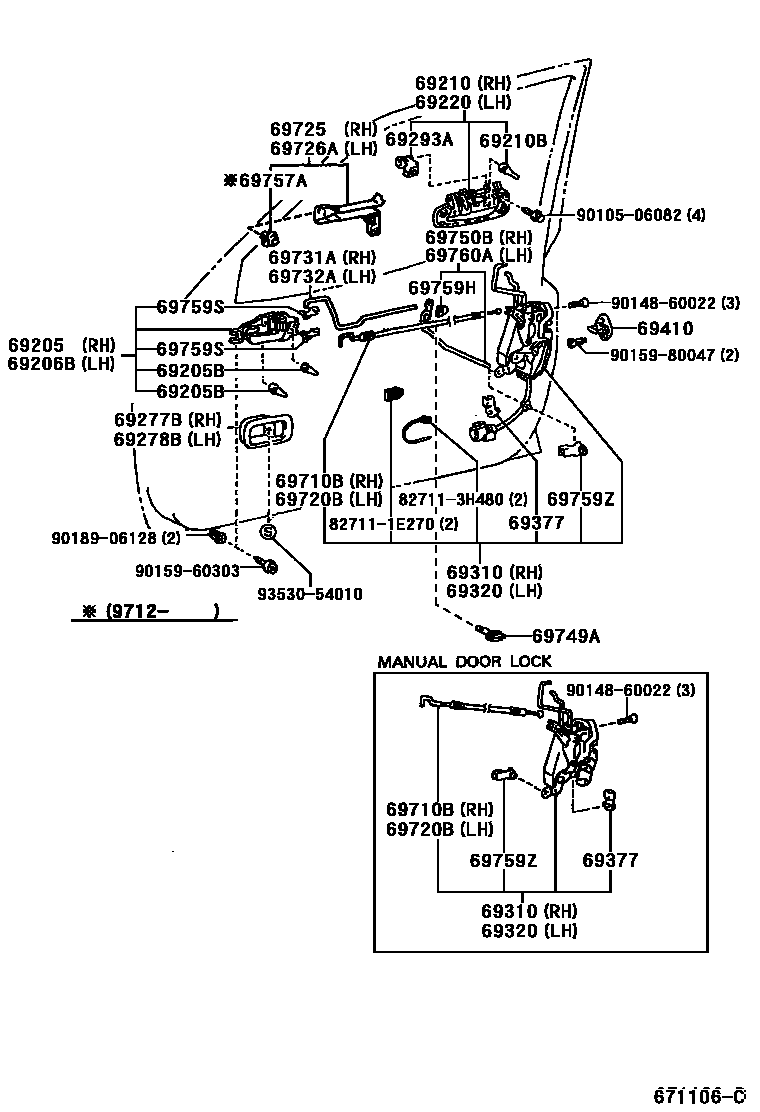

Toyota RAV4 EV — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
D=8.5
D=12
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,056
SILVER ME,199
WINE RED MC,3J8
DK.GREEN M.M.,6P3
BLUE M.M.,8L5
WHITE,056
SUPER WHITE 2,040
SILVER ME,199
SILVER ME.,1C0
RED MC.,3M8
DK.GREEN M.M.,6P3
BLUE M.M.,8L5
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,056
SILVER ME,199
WINE RED MC,3J8
DK.GREEN M.M.,6P3
BLUE M.M.,8L5
WHITE,056
SUPER WHITE 2,040
SILVER ME,199
SILVER ME.,1C0
RED MC.,3M8
DK.GREEN M.M.,6P3
BLUE M.M.,8L5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
SHADOW GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
SHADOW GRAY,TRIM1#
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
69377SNAP, FRONT DOOR LOCK CONTROL ROD
RH,NATURAL
LH,BLUE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69757ACLAMP, DOOR LOCK CONTROL BELLCRANK
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH,PINK
RH,YELLOW
69759ZSNAP, DOOR LOCK CONTROL LINK
LH,GREEN
RH,GRAY
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
827111E270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E270
827113H480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H480
9010506082
main90105-06082
9014860022
main90148-60022
9015960303
main90159-60303
9015980047
main90159-80047
9018906128
main90189-06128
9353054010
main93530-54010
34 parts on this diagram · 1 diagram in section
