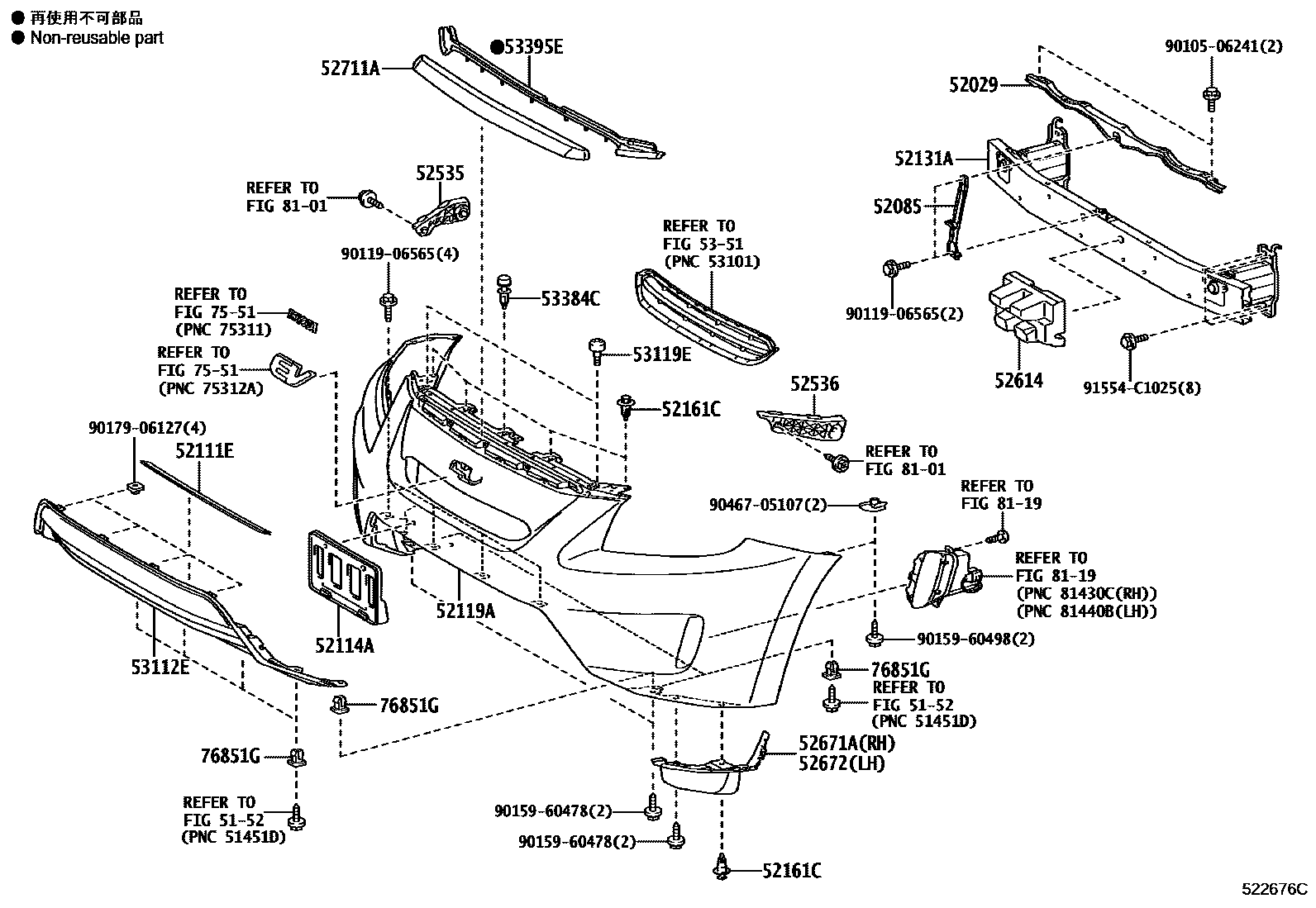

Toyota RAV4 EV — FRONT BUMPER & BUMPER STAY
5152SUSPENSION CROSSMEMBER & UNDER COVER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52085STAY SUB-ASSY, FRONT BUMPER, CENTER
52111EBAR, FRONT BUMPER
NO PAINT REQ.
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
PAINT REQ.
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52671AEXTENSION, FRONT BUMPER ARM, RH
52672EXTENSION, FRONT BUMPER ARM, LH
52711AGARNISH, FRONT BUMPER
53112EGRILLE, RADIATOR, LOWER NO.1
PLATED
PLATED
53119EPROTECTOR, RADIATOR GRILLE
53384CCUSHION, HOOD, CENTER
53395ESEAL, HOOD TO FRONT END PANEL
5351RADIATOR GRILLE
7551EMBLEM & NAME PLATE
76851GGROMMET, SCREW, NO.1
8101HEADLAMP
8119DAYTIME RUNNING LAMP OR ILLUMINATION LAMP
9010506241
main90105-06241
9011906565
main90119-06565
9015960478
main90159-60478
9015960498
main90159-60498
9017906127
main90179-06127
9046705107
main90467-05107
91554C1025
main91554-C1025
30 parts on this diagram · 1 diagram in section
FRONT BUMPER & BUMPER STAY for Toyota RAV4 EV
This section contains 30 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota RAV4 EV. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, STAY SUB-ASSY, FRONT BUMPER, CENTER, BAR, FRONT BUMPER, BRACKET, FRONT BUMPER EXTENSION MOUNTING.
