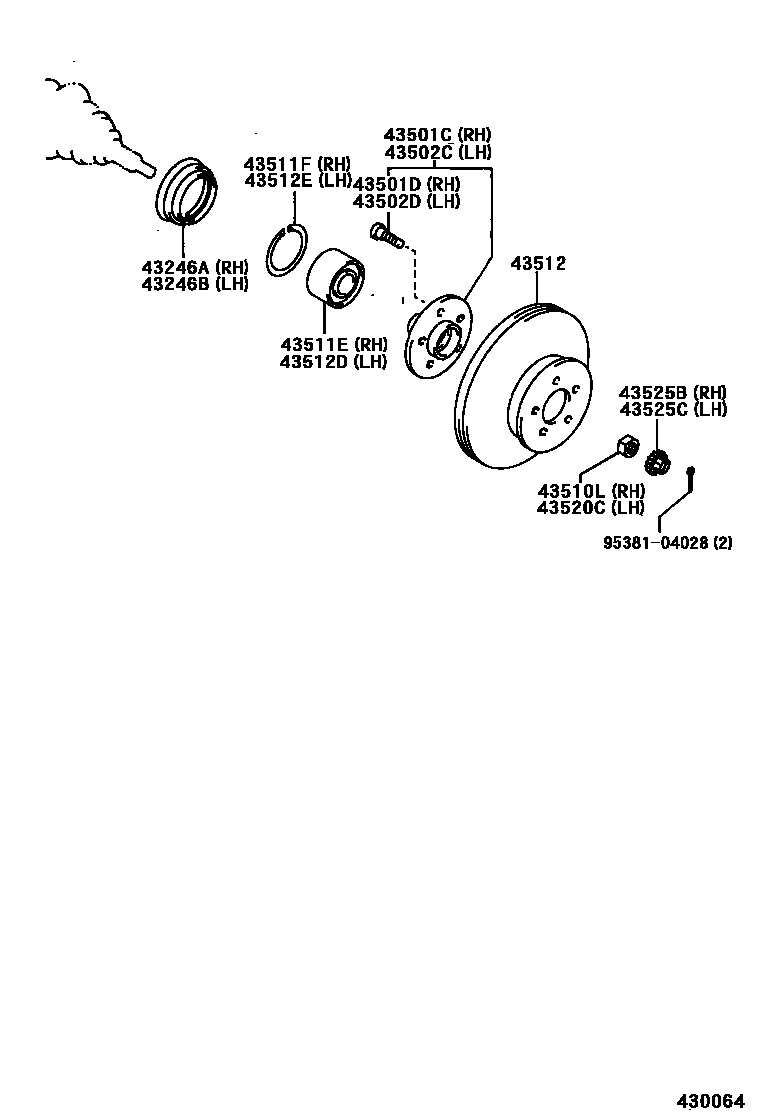

Toyota RAV4 EV — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-32020iBEA11199709-199911

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-32020iBEA11199709-199911

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-44010iBEA11199709-199911

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iBEA11199911

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-44010iBEA11199911

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iBEA11199911

sub90942-02049

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iBEA11199712-199911

main90179-22020iBEA11199709-199712

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009iBEA11199911

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iBEA11199911

43512DISC, FRONT

main43512-42010×2iBEA11200209

main43512-42020×2iBEA11199911-200209

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-43009iBEA11199709-199911

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iBEA11199911

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iBEA11199712-199911

main90179-22020iBEA11199709-199712

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iBEA11199709-199911

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iBEA11199709-199911

9538104028

main95381-04028

16 parts on this diagram · 1 diagram in section
