Toyota RAV4 EV — CONTROL COMPUTER(BEV OR FCEV)

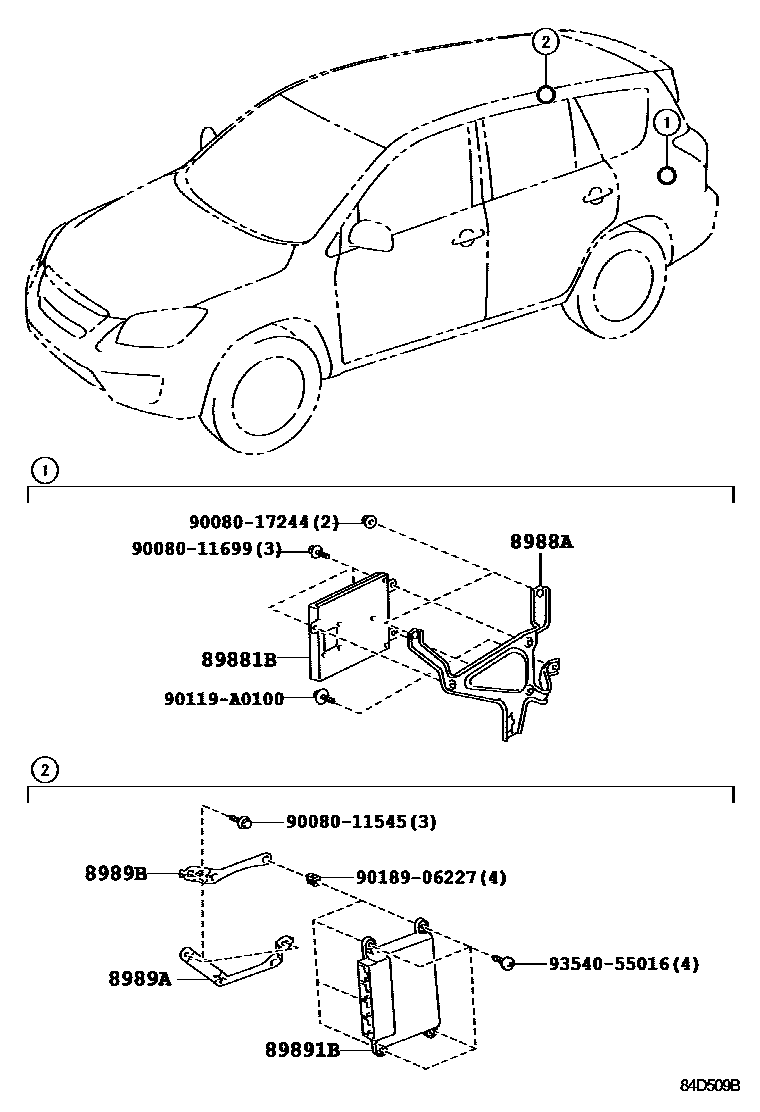

Parts diagram

89881BCOMPUTER, EV GATEWAY CONTROL

main89881-0R011i201204

8988ABRACKET, EV GATEWAY CONTROL COMPUTER, NO.1

main8988A-42010i201204-201205

main8988A-42011i201205-201206

main8988A-42012i201206

89891BCOMPUTER, THERMAL CONTROL

main89891-0R011i201204

8989ABRACKET, THERMAL CONTROL COMPUTER, NO.1

main8989A-42011i201204-201208

main8989A-42012i201209

8989BBRACKET, THERMAL CONTROL COMPUTER, NO.2

main8989B-42011i201204-201208

main8989B-42012i201209

9008011545

main90080-11545

9008011699

main90080-11699

9008017244

main90080-17244

90119A0100

main90119-A0100

9018906227

main90189-06227

9354055016

main93540-55016

11 parts on this diagram · 1 diagram in section

CONTROL COMPUTER(BEV OR FCEV) for Toyota RAV4 EV

This section contains 11 genuine Toyota parts for the CONTROL COMPUTER(BEV OR FCEV) system of the Toyota RAV4 EV. Key components include: COMPUTER, EV GATEWAY CONTROL, BRACKET, EV GATEWAY CONTROL COMPUTER, NO.1, COMPUTER, THERMAL CONTROL, BRACKET, THERMAL CONTROL COMPUTER, NO.1, BRACKET, THERMAL CONTROL COMPUTER, NO.2.
