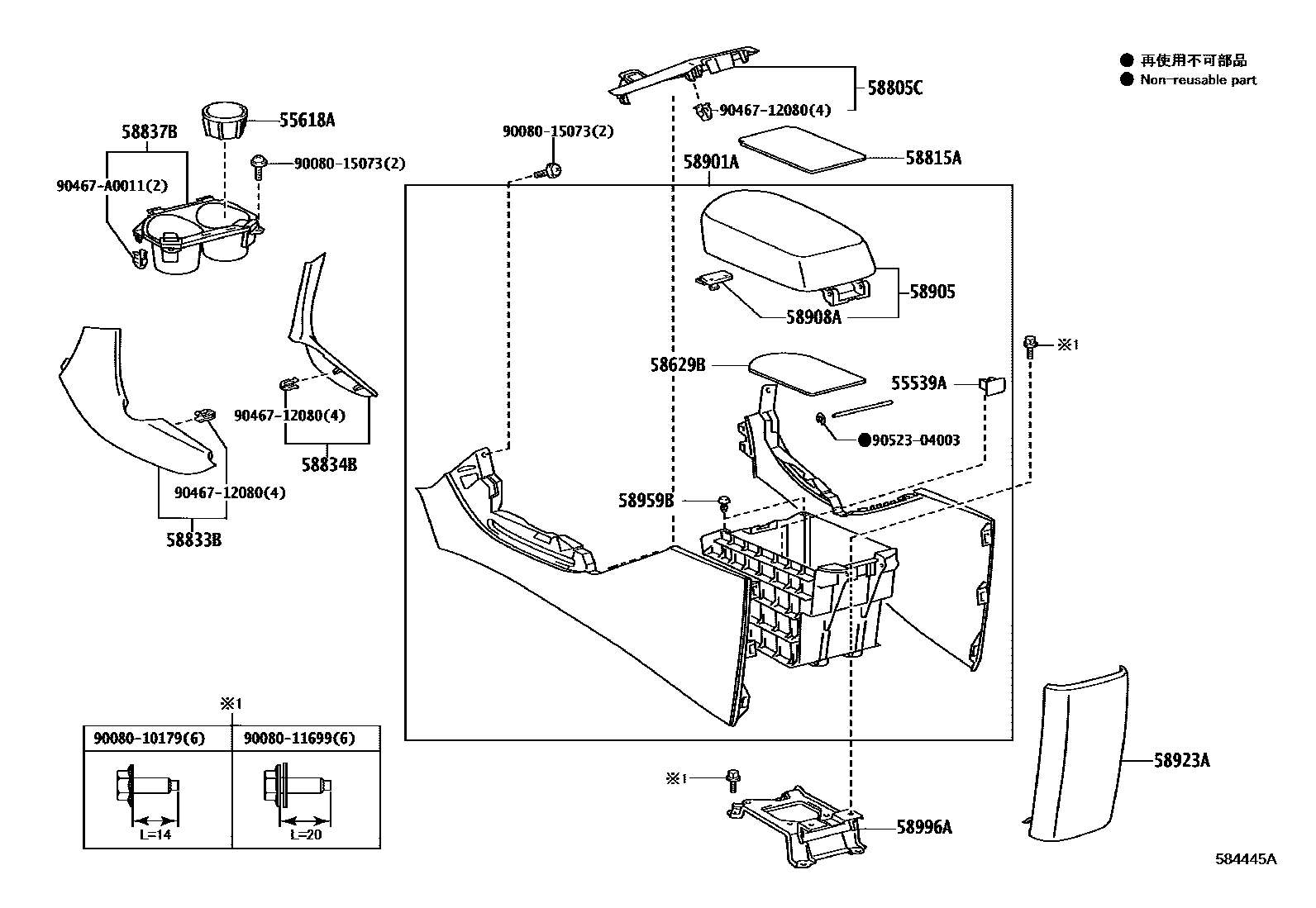

Toyota RAV4 EV — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-02130-B0iQEA38201204-201408

DK.GRAY

55618AHOLDER, CONSOLE BOX CUP

main55618-0R011iQEA38201204

58629BMAT, CENTER CONSOLE

main58629-0R010iQEA38201204

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42041-B1iQEA38201204-201408

GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-0R010iQEA38201204

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0R040iQEA38201204

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0R030iQEA38201204

58837BBOX, CONSOLE CUP HOLDER

main58837-0R010-B0iQEA38201204-201408

DK.GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0R010-B1iQEA38201204-201408

GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0R010-B1iQEA38201204-201408

GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iQEA38201204

58923APANEL, CONSOLE REAR END

main58923-0R010-B1iQEA38201204-201408

GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-0R010×2iQEA38201204

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R010iQEA38201204

9008010179

main90080-10179

9008011699

main90080-11699

9008015073

main90080-15073

9046712080

main90467-12080

90467A0011

main90467-A0011

9052304003

main90523-04003

20 parts on this diagram · 1 diagram in section
