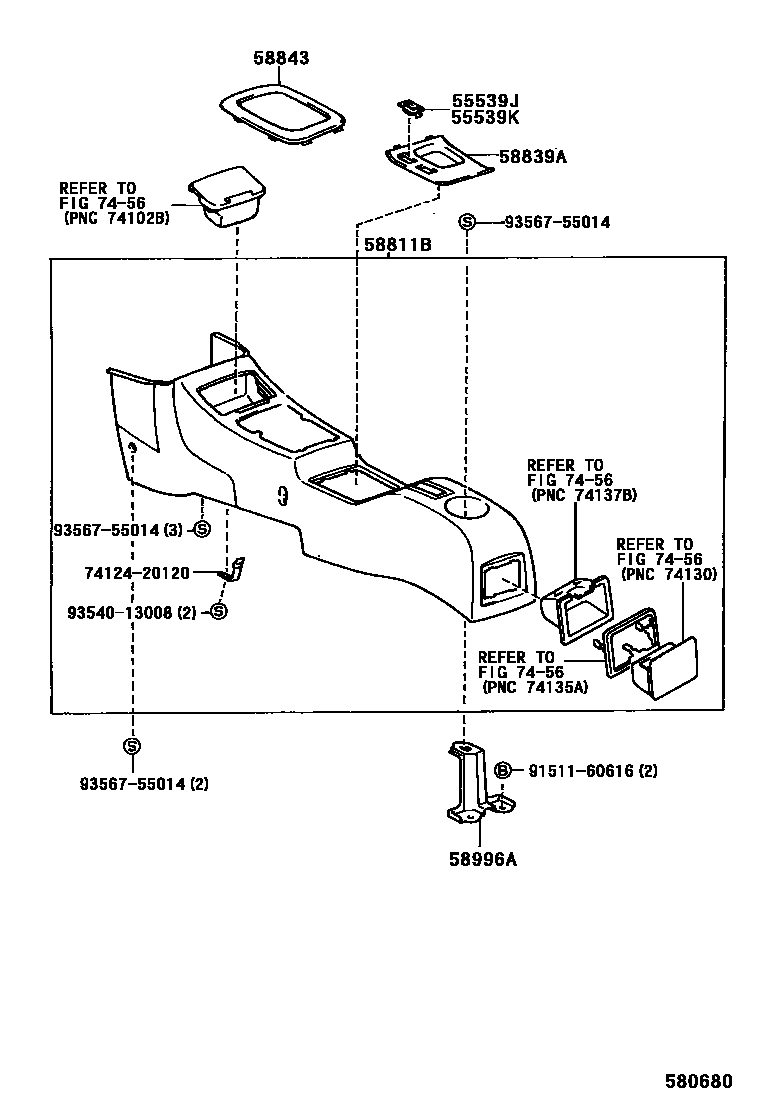

Toyota RAV4 EV — CONSOLE BOX & BRACKET
55539JCOVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
55539KCOVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
58811BBOX, CONSOLE
SHADOW GRAY,TRIM1#
58839ACOVER, CONSOLE BOX HOLE
SHADOW GRAY,TRIM1#
58843BEZEL, SHIFTING HOLE
SHADOW GRAY,TRIM1#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7456
7412420120SPRING, FRONT ASH RECEPTACLE RETAINER, RH
main74124-20120
9151160616
main91511-60616
9354013008
main93540-13008
9356755014
main93567-55014
11 parts on this diagram · 1 diagram in section
