Toyota RAV4 EV — BEV MOTOR

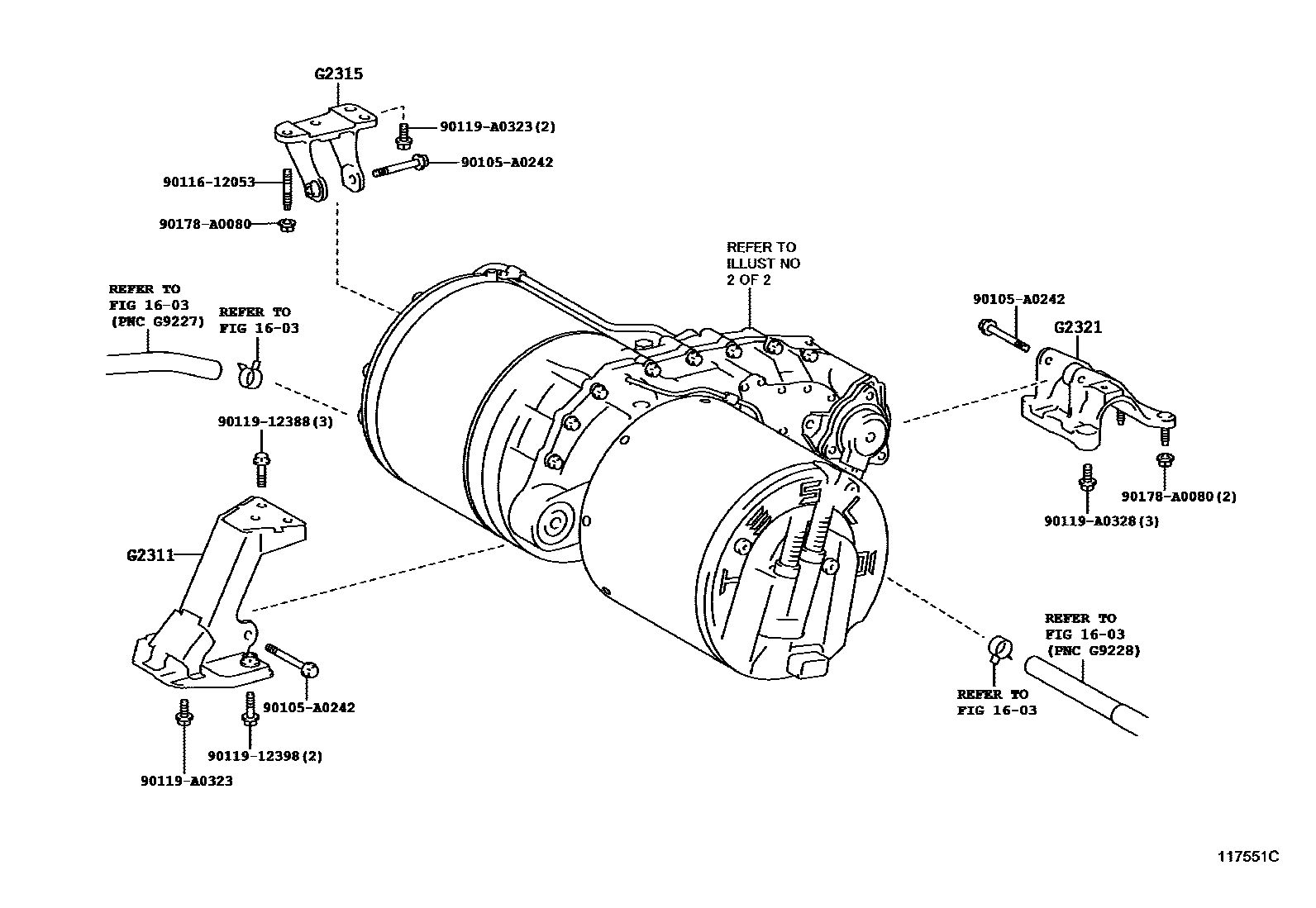

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

G2311BRACKET, MOTOR MOUNTING, FRONT

mainG23110R010i201204

G2315BRACKET, MOTOR MOUNTING, RH

mainG23150R010i201204

G2321BRACKET, MOTOR MOUNTING, REAR

mainG23210R010i201204

90105A0242

main90105-A0242

9011612053

main90116-12053

9011912388

main90119-12388

9011912398

main90119-12398

90119A0323

main90119-A0323

90119A0328

main90119-A0328

90178A0080

main90178-A0080

11 parts on this diagram · 2 diagrams in section

BEV MOTOR for Toyota RAV4 EV

This section contains 29 genuine Toyota parts for the BEV MOTOR system of the Toyota RAV4 EV. Key components include: RADIATOR & WATER OUTLET, MANIFOLD SUB-ASSY, SEAL, MECHANICAL, BREATHER, TRANSMISSION, NO.1, BREATHER, TRANSMISSION, NO.2.
