Toyota RAV4 EV — BEV MOTOR

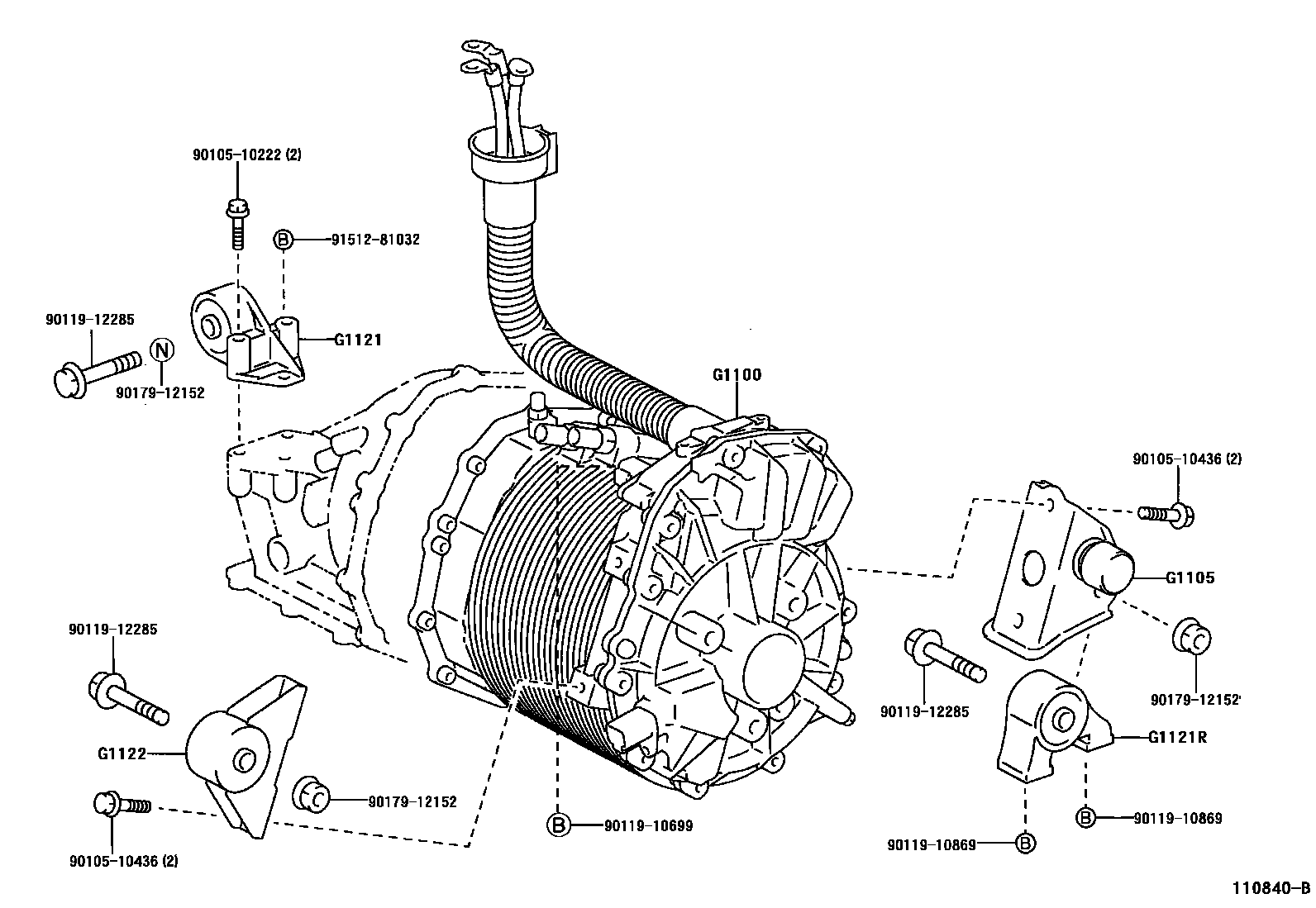

Parts diagram

G1100MOTOR ASSY, HYBRID VEHICLE

mainG110042020i199709-199911

G1105BRACKET SUB-ASSY, EV MOTOR, REAR

mainG110542010i199709-199807

mainG110542011i199807-199911

G1121INSULATOR, ELECTRIC VEHICLE MOUNTING, FR RH

mainG112142010i199709-199911

G1121RINSULATOR, ELETRIC VEHICLE MOUNTING, REAR

mainG112342020i199709-199807

mainG112342021i199807-199911

mainG112342022i200206

G1122INSULATOR, ELECTRIC VEHICLE MOTOR MONUTING, FRONT LH

mainG112242020i199709-199807

mainG112242021i199807-199911

mainG112242022i200206

9010510222

main90105-10222

9010510436

main90105-10436

9011910699

main90119-10699

9011910869

main90119-10869

9011912285

main90119-12285

9017912152

main90179-12152

9151281032

main91512-81032

12 parts on this diagram · 1 diagram in section

BEV MOTOR for Toyota RAV4 EV

This section contains 12 genuine Toyota parts for the BEV MOTOR system of the Toyota RAV4 EV. Key components include: MOTOR ASSY, HYBRID VEHICLE, BRACKET SUB-ASSY, EV MOTOR, REAR, INSULATOR, ELECTRIC VEHICLE MOUNTING, FR RH, INSULATOR, ELETRIC VEHICLE MOUNTING, REAR, INSULATOR, ELECTRIC VEHICLE MOTOR MONUTING, FRONT LH.
