Toyota RAV4 EV — BACK DOOR LOCK & HINGE

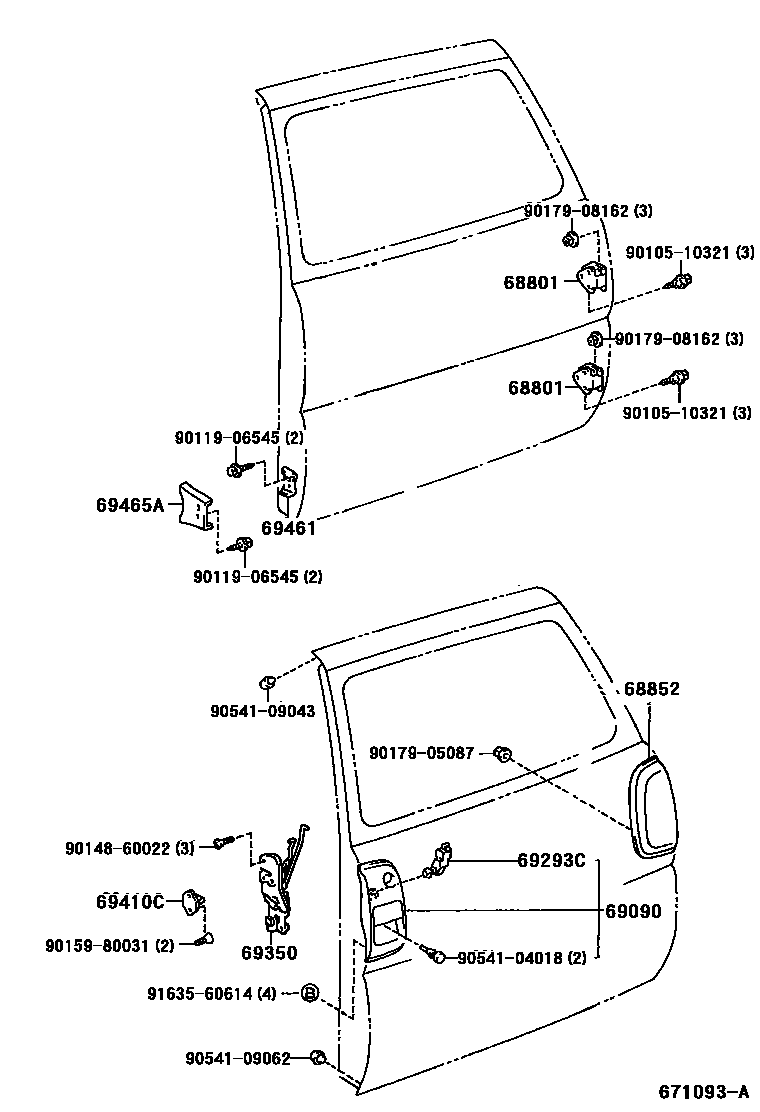

Parts diagram

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-42020×2i199911

68852COVER, BACK DOOR HINGE

main68851-42010i199709-199911

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-42010i199709-199911

69293CSNAP, BACK DOOR HANDLE

main69293-12030i199709-199911

69350LOCK ASSY, BACK DOOR

main69110-42021i199709-199911

W(POWER DOOR LOCK)

main69350-42021i199709-199911

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-42010i199709-199911

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-42011i199709-199911

69465ASTOPPER, BACK DOOR SIDE FEMALE

main69465-42011i199709-199911

9010510321

main90105-10321

9011906545

main90119-06545

9014860022

main90148-60022

9015980031

main90159-80031

9017905087

main90179-05087

9017908162

main90179-08162

9054104018

main90541-04018

9054109043

main90541-09043

9054109062

main90541-09062

9163560614

main91635-60614

18 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HINGE for Toyota RAV4 EV

This section contains 18 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota RAV4 EV. Key components include: HINGE SUB-ASSY, BACK DOOR, UPPER RH, COVER, BACK DOOR HINGE, HANDLE ASSY, BACK DOOR, OUTSIDE, SNAP, BACK DOOR HANDLE, LOCK ASSY, BACK DOOR.
