Toyota RAV4 EV — ARMREST & VISOR

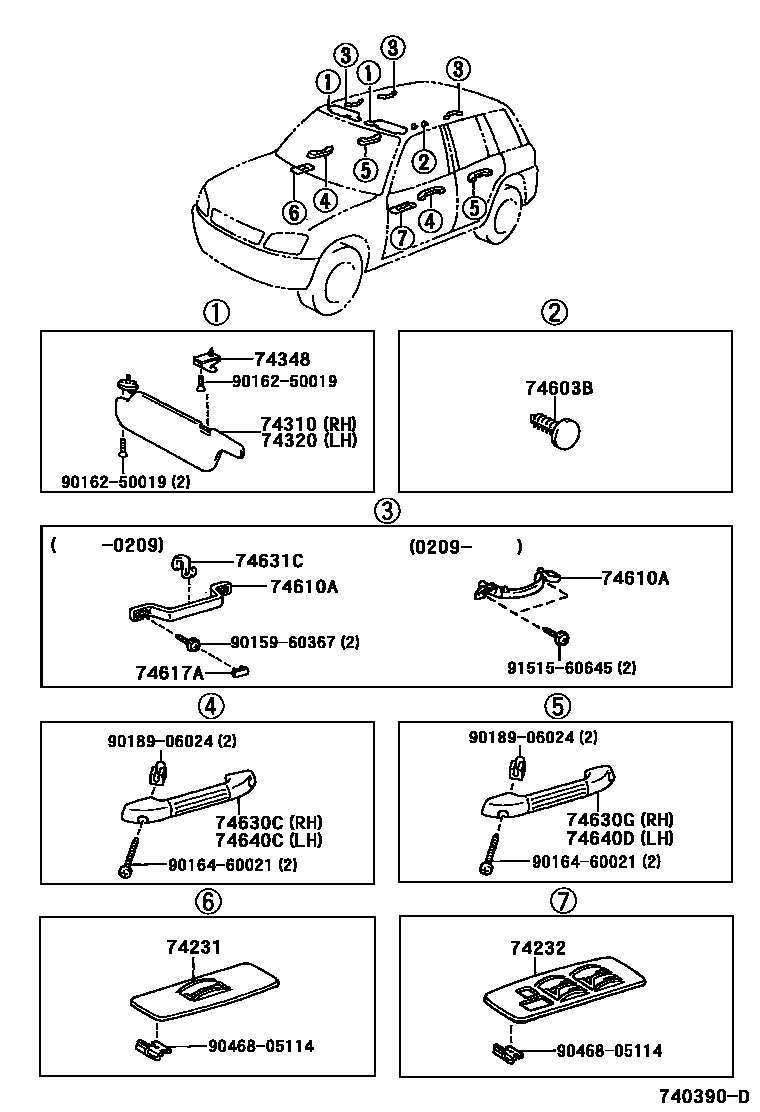

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-42050-B1i199709
DARK GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-42040-B1i199709
DARK GRAY,TRIM1#
74310VISOR ASSY, RH
main74310-42190-B0i199709-199908
LT. GRAY,TRIM1#
main74310-42240-B0i199908-200209
LT. GRAY,TRIM1#
main74310-42320-B0i200209
LT. GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-42220-B0i199901-199908
LT. GRAY,TRIM1#
main74320-42250-B0i199709-199901
LT. GRAY,TRIM1#
main74320-42270-B0i199908-200209
LT. GRAY,TRIM1#
main74320-42360-B0i200209
LT. GRAY,TRIM1#
74348HOLDER, VISOR
main74348-22020-B6×2i199709
LT.GRAY,TRIM1#
74603BCLIP (FOR ASSIST GRIP)
main90467-06070-B4×2i199709-200209
LT.GRAY,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
main74603-16010-B1×3i199709-200209
GRAY,TRIM1#
sub74610-16010
sub74610-12030
main74611-12020-B1i200209
LT.GRAY,TRIM1#,FRONT
main74611-12030-B1×2i200209
LT.GRAY,TRIM1#,REAR
74617APLUG, ASSIST GRIP
main74617-16010-B8×6i199709-200209
LI. GRAY,TRIM1#
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-42020-B1i199804
SHADOW GRAY,TRIM1#
main74630-42040-B1i199709-199804
SHADOW GRAY,TRIM1#
74630GGRIP ASSY, REAR DOOR ASSIST RH
main74630-42020-B1i199804
SHADOW GRAY,TRIM1#
main74630-42040-B1i199709-199804
SHADOW GRAY,TRIM1#
74631CHOOK, COAT
main74631-42010-B0×2i199709-200209
LT.GRAY,TRIM1#
74640CGRIP ASSY, DOOR ASSIST, LH
main74630-42020-B1i199804
SHADOW GRAY,TRIM1#
main74630-42040-B1i199709-199804
SHADOW GRAY,TRIM1#
74640DGRIP ASSY, REAR DOOR ASSIST LH
main74630-42020-B1i199804
SHADOW GRAY,TRIM1#
main74630-42040-B1i199709-199804
SHADOW GRAY,TRIM1#
9015960367
main90159-60367
9016250019
main90162-50019
9016460021
main90164-60021
9018906024
main90189-06024
9046805114
main90468-05114
9151560645
main91515-60645

19 parts on this diagram · 1 diagram in section
