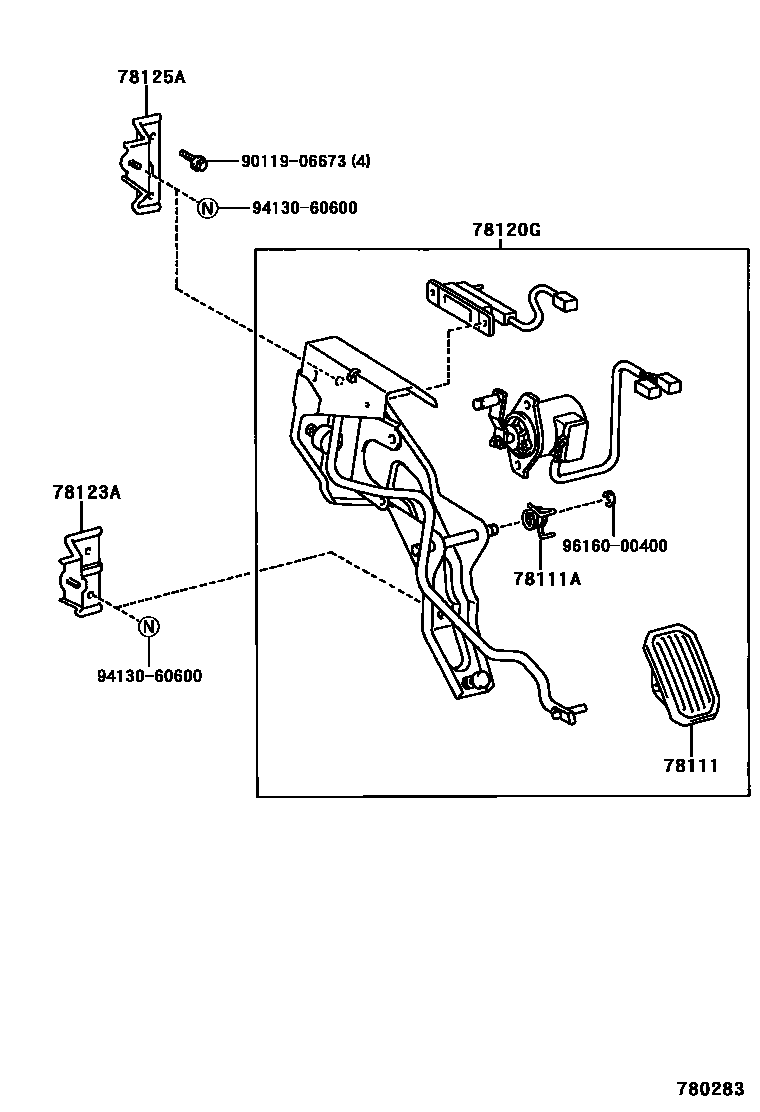

Toyota RAV4 EV — ACCELERATOR LINK

78111PEDAL, ACCELERATOR

main78111-32010i199709-199911

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050i199709-199911

78120GROD ASSY, ACCELERATOR PEDAL

main78100-42030i199709-199911

78123AREINFORCEMENT, ACCELERATOR PEDAL ROD

main78123-42010i199709-199911

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-42020i199709-199911

9011906673

main90119-06673

9413060600

main94130-60600

9616000400

main96160-00400

8 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota RAV4 EV

This section contains 8 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota RAV4 EV. Key components include: PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), ROD ASSY, ACCELERATOR PEDAL, REINFORCEMENT, ACCELERATOR PEDAL ROD, BRACKET, ACCELERATOR PEDAL ROD, NO.2.
