Toyota RAV4 EV — ABS & VSC

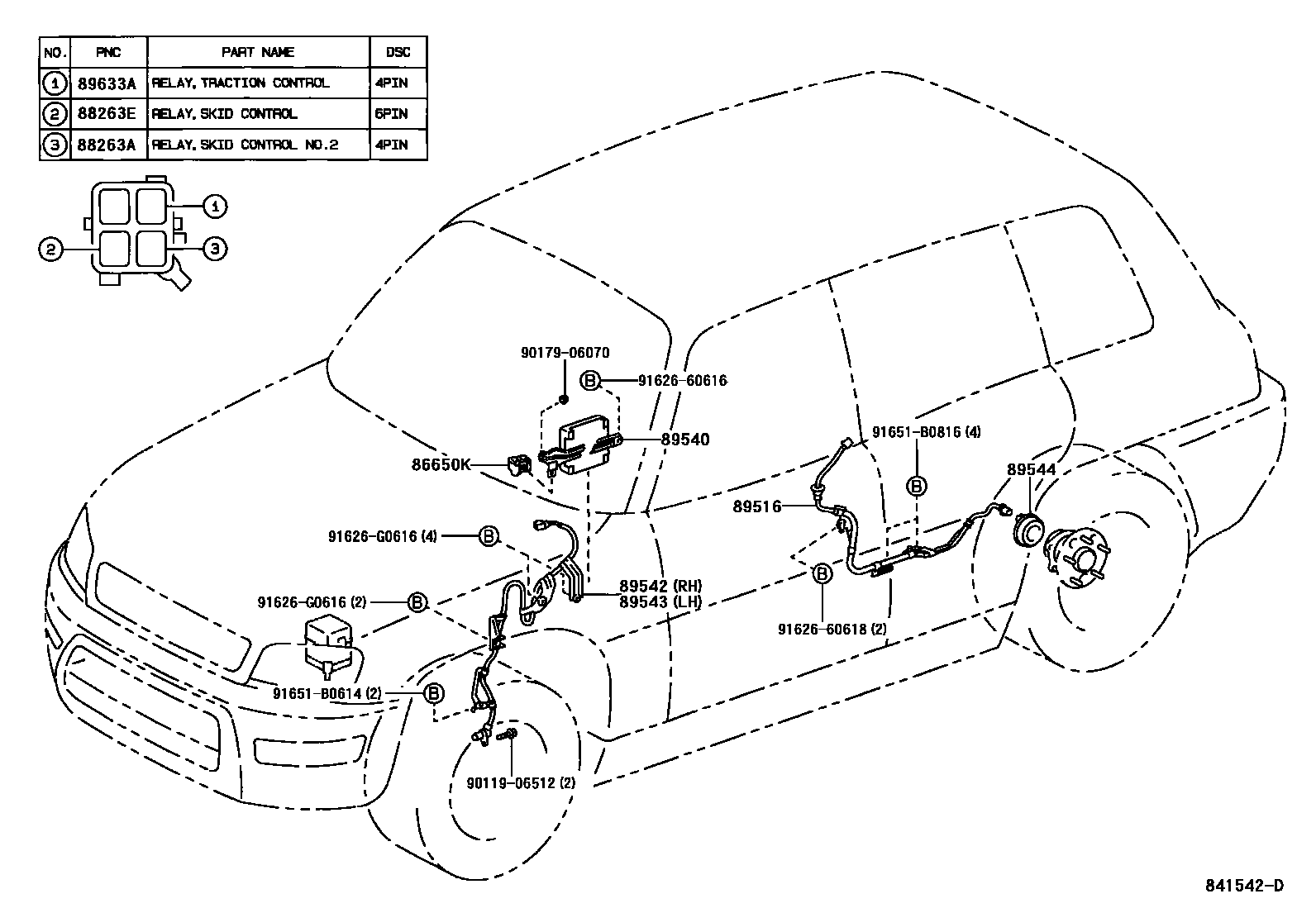

Parts diagram

86650KBUZZER ASSY, SKID CONTROL

main86650-26070i199911

88263ARELAY, SKID CONTROL

main88263-24020i199709-199911

88263ERELAY, SKID CONTROL NO.2

main88263-24030i199911

89516WIRE, SKID CONTROL SENSOR

main89516-42010i199709-199911

RH

main89516-42020i199709-199911

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-42090i199709-199810

main89540-42091i199810-199911

89542SENSOR, SPEED, FRONT RH

main89542-42030i199709-199911

89543SENSOR, SPEED, FRONT LH

main89543-42030i199709-199911

89544SENSOR, SKID CONTROL

main89544-42010×2i199709-199911

89633ARELAY, TRACTION CONTROL OR VSC

main89633-24010i199709-199911

9011906512

main90119-06512

9017906070

main90179-06070

9162660616

main91626-60616

9162660618

main91626-60618

91626G0616

main91626-G0616

91651B0614

main91651-B0614

91651B0816

main91651-B0816

16 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota RAV4 EV

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota RAV4 EV. Key components include: BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, WIRE, SKID CONTROL SENSOR, COMPUTER ASSY, SKID CONTROL.
