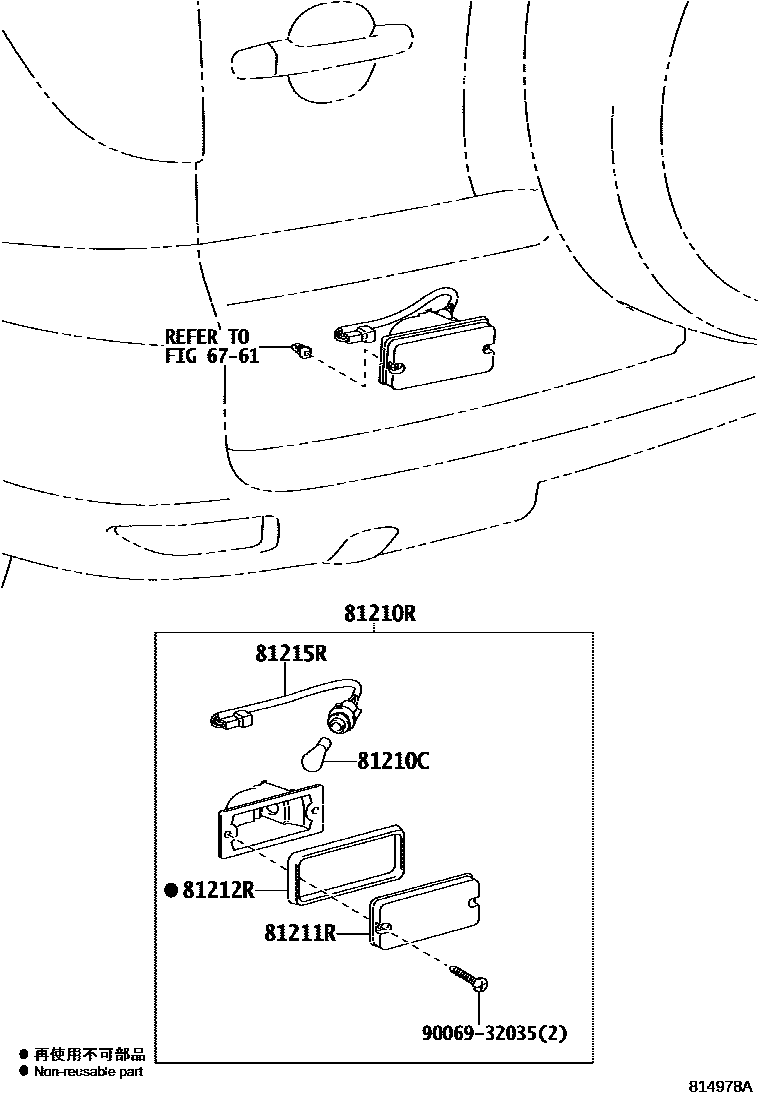

Toyota RAV4 (CHINA) — REAR FOG LAMP

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

81210CBULB, REAR FOG LAMP

main99132-11210i200903-201108

12V 21W

81210RLAMP ASSY, REAR FOG

main81480-0R010i200903-201108

81211RLENS, REAR FOG LAMP

main81457-0R010i200903-201108

81212RGASKET, REAR FOG LAMP, NO.1

main81458-0R010i200903-201108

81215RSOCKET & WIRE, REAR FOG LAMP

main81459-0R010i200903-201108

9006932035

main90069-32035

7 parts on this diagram · 1 diagram in section

REAR FOG LAMP for Toyota RAV4 (CHINA)

This section contains 7 genuine Toyota parts for the REAR FOG LAMP system of the Toyota RAV4 (CHINA). Key components include: BACK DOOR PANEL & GLASS, BULB, REAR FOG LAMP, LAMP ASSY, REAR FOG, LENS, REAR FOG LAMP, GASKET, REAR FOG LAMP, NO.1.
