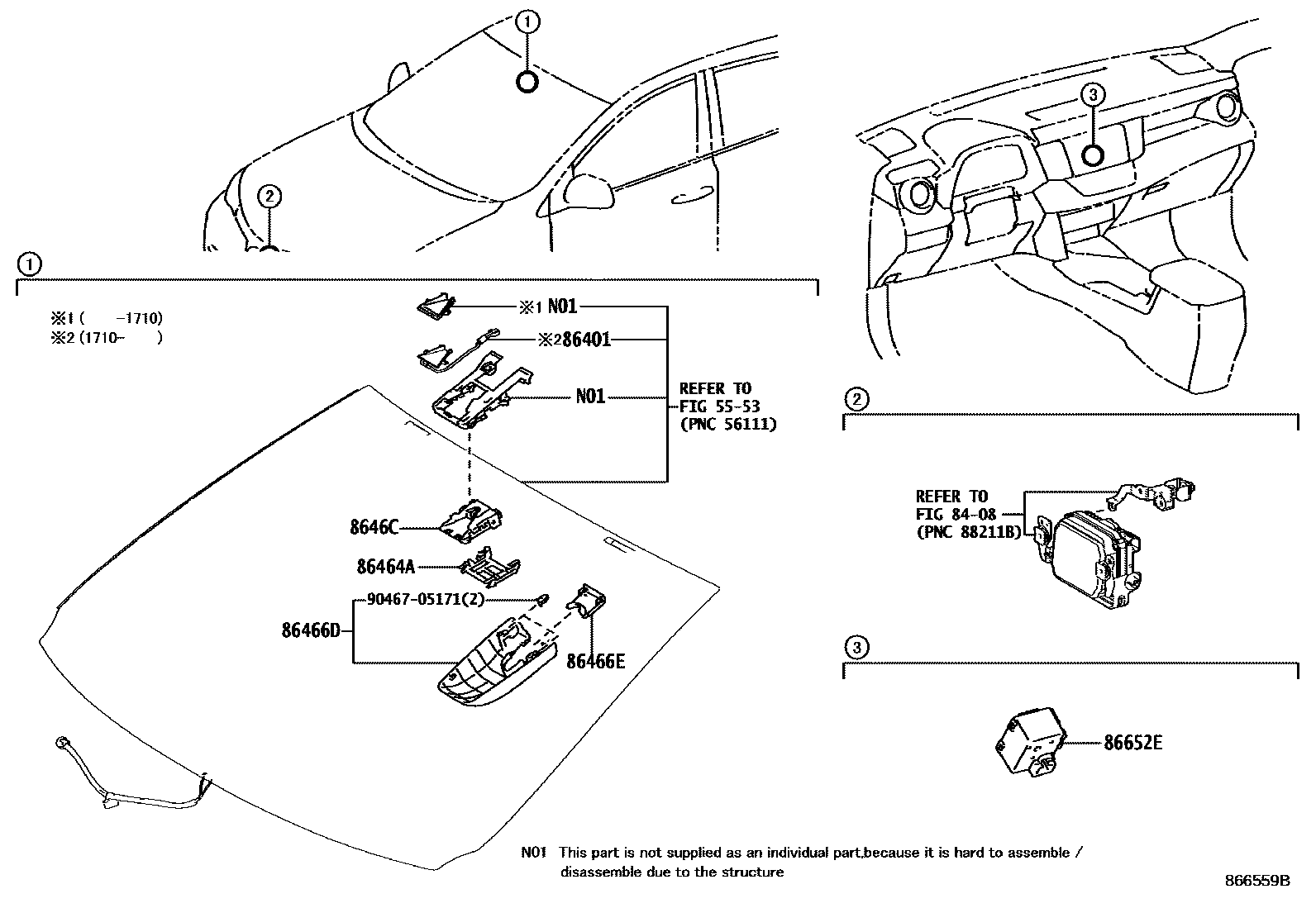

Toyota RAV4 (CHINA) — PRE-COLLISION SYSTEM

5553

8408

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-48030iASA4#..M201710

PRE-COLLISION SYSTEM-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-48011iASA4#..Q201607

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42040iASA44..Q201607-201710

main86466-42041iASA4#..M201710

PRE-COLLISION SYSTEM-WITH

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42050iASA44..Q201607-201710

main86466-42051iASA4#..M201710

PRE-COLLISION SYSTEM-WITH

8646CCAMERA, FORWARD RECOGNITION

main8646C-42020iASA44..Q201607-201710

main8646C-42021iASA4#..M201710

PRE-COLLISION SYSTEM-WITH

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iASA4#..Q201607

9046705171

main90467-05171

9 parts on this diagram · 1 diagram in section
