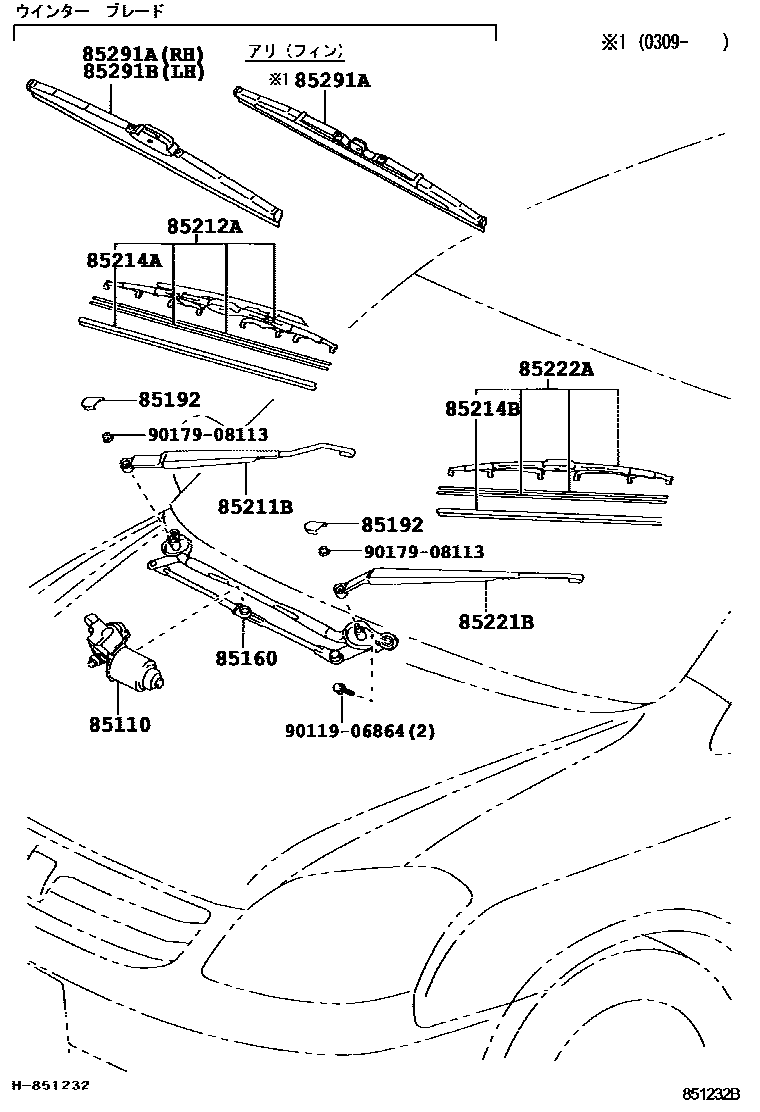

Toyota RAUM — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-13080supersedes 85110-52180i200304

85160LINK ASSY, WINDSHIELD WIPER

main85150-46020i200304

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2i200304

85211BARM, FRONT WIPER, RH

main85211-46030i200304

85212ABLADE, FR WIPER, RH

main85212-46010i200304

85214ARUBBER, WIPER, RH

main85214-48010i200304

85214BRUBBER, WIPER, LH

main85214-46010i200304-200605

main85214-46011i200606

85221BARM, FRONT WIPER, LH

main85221-46020i200304

85222ABLADE, FR WIPER, LH

main85222-46010i200304-200605

main85222-46011i200606

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090supersedes 85291-22100i200304

main85291-22100i200309

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050i200304

9011906864

main90119-06864

9017908113

main90179-08113

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RAUM

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAUM. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
