Toyota RAUM — WINDSHIELD WIPER

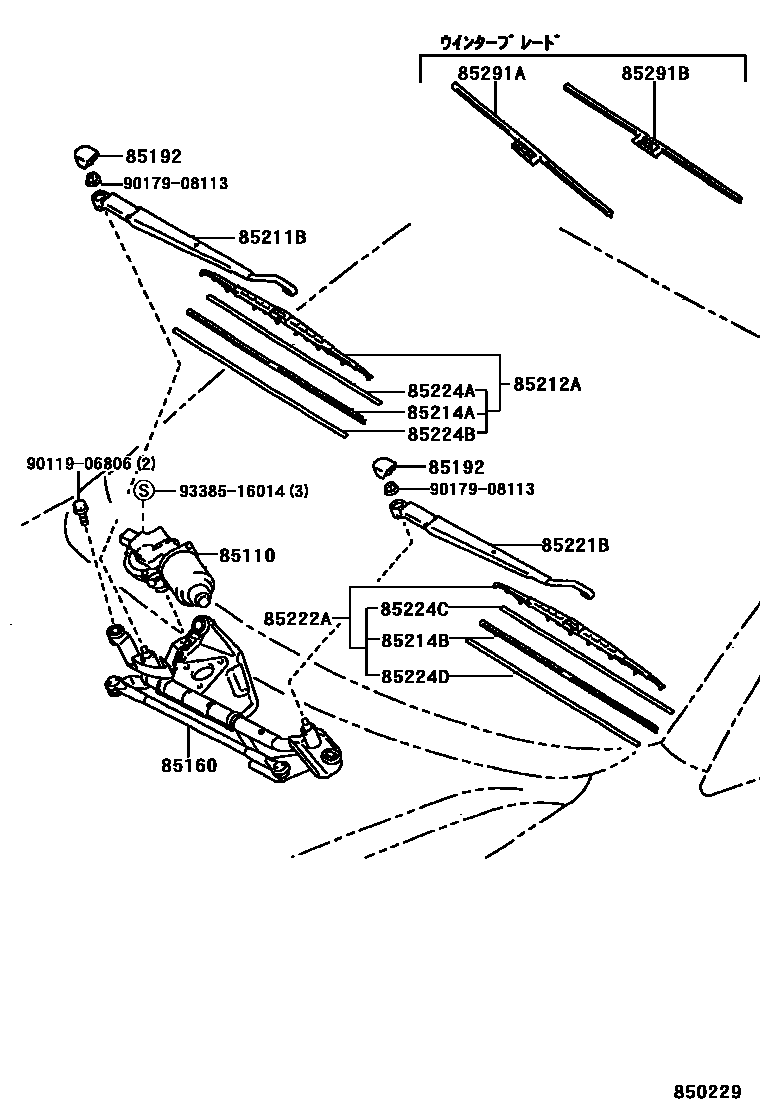

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-46010i199705

main85110-46020i199705

85160LINK ASSY, WINDSHIELD WIPER

main85150-46010i199705

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2i199705

85211BARM, FRONT WIPER, RH

main85211-46011i199705

85212ABLADE, FR WIPER, RH

main85212-22420i199705

85214ARUBBER, WIPER, RH

main85214-33110i199705

85214BRUBBER, WIPER, LH

main85214-20350i199705

85221BARM, FRONT WIPER, LH

main85221-46010i199705

85222ABLADE, FR WIPER, LH

main85222-20390i199705-200207

main85222-22780i200207

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040i199705

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040i199705

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310i199705

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310i199705

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-46010i199705

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030i199705

9011906806

main90119-06806

9017908113

main90179-08113

9338516014

main93385-16014

18 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RAUM

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAUM. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
