Toyota RAUM — WINDSHIELD WASHER

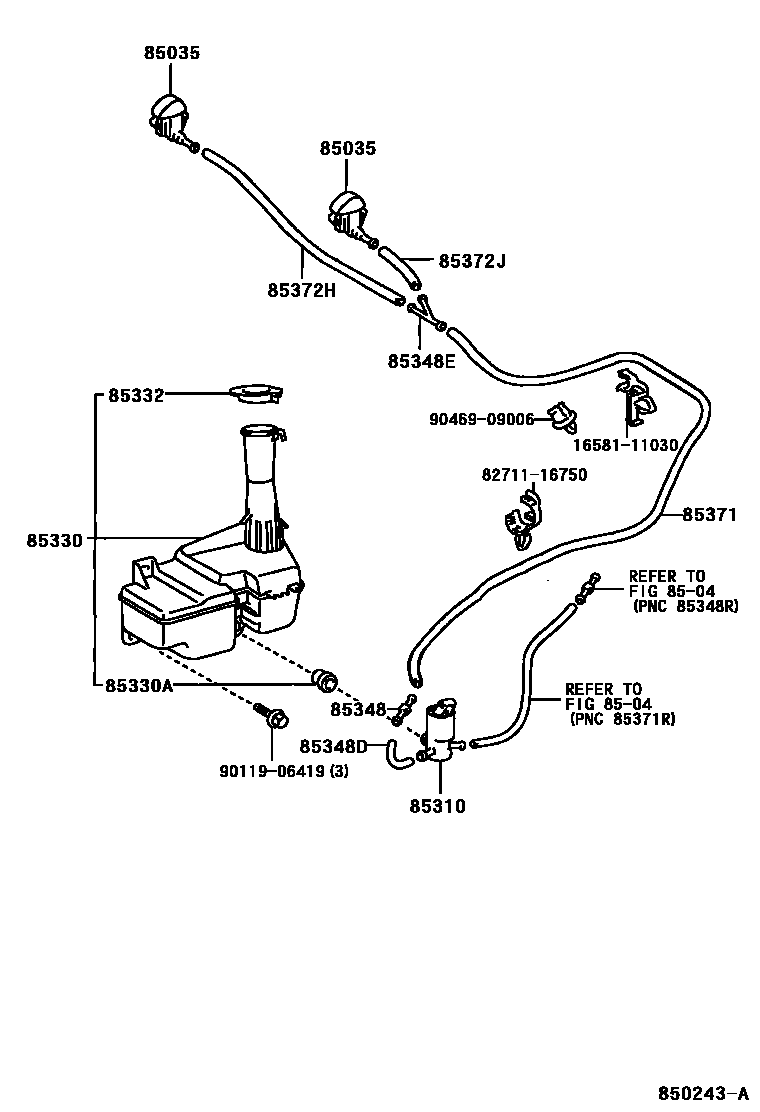

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-46010×2i199705

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i199705

main85330-10290i199705

85330JAR ASSY, WINDSHIELD WASHER

main85315-46010i199705

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199705

85332CAP, WINDSHIELD WASHER JAR

main85316-33050i199705

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470i199705

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i199705

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85378-33230i199705

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33906i199705

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199705-199803

main90446-07001i199803

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i199705

1658111030CLAMP, HOSE(FOR WATER HOSE)

main16581-11030

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

9011906419

main90119-06419

9046909006

main90469-09006

16 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota RAUM

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAUM. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
